Band: opinion spread · Dot: weighted average

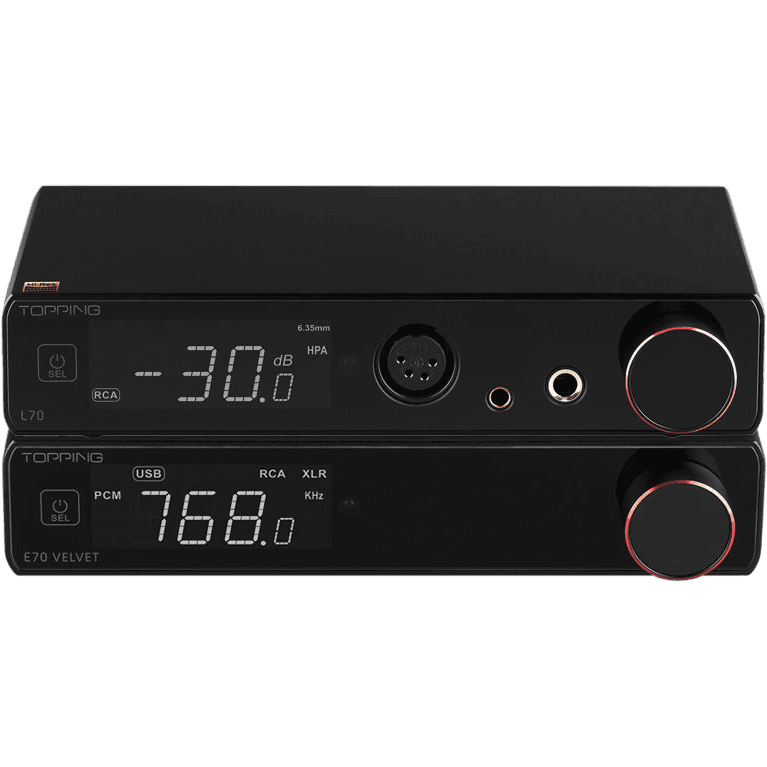

The L70's balanced outputs are the stack's headline: two benches measured about 7 W into 32 Ω and about 1 W into 300 Ω, and reviewers drove everything from the HD 650 to the notoriously insensitive Dan Clark Expanse without running out of volume. The single-ended jack is rated at roughly a third of the balanced power. The dissent is at the extremes: with low-impedance planars driven hard or EQ'd, the amp's protection can trip and cut the audio, and TechPowerUp felt it lacked some impact on demanding headphones.
“In high gain, it blows the doors open with 1 watt of power.”
Audio Science Review
“Lots of clean driving power”
Headfonics
“The amp will go into safe mode and cut out audio when the volume is turned up beyond the 70 range.”
Amazon owner (Audeze LCD-S20)
Measured
ASR measured about 1 W into 300 Ω on high gain and about 7 W into 32 Ω from the balanced output without clipping. L7Audiolab's balanced sweeps reached about 1.1 W into 300 Ω, 4.3 W into 68 Ω, 7 W into 32 Ω and 5.5 W into 16 Ω. Topping rates the 6.35 mm jack at 2.3 W into 32 Ω and 290 mW into 300 Ω.
