DAC / AmpOverreview

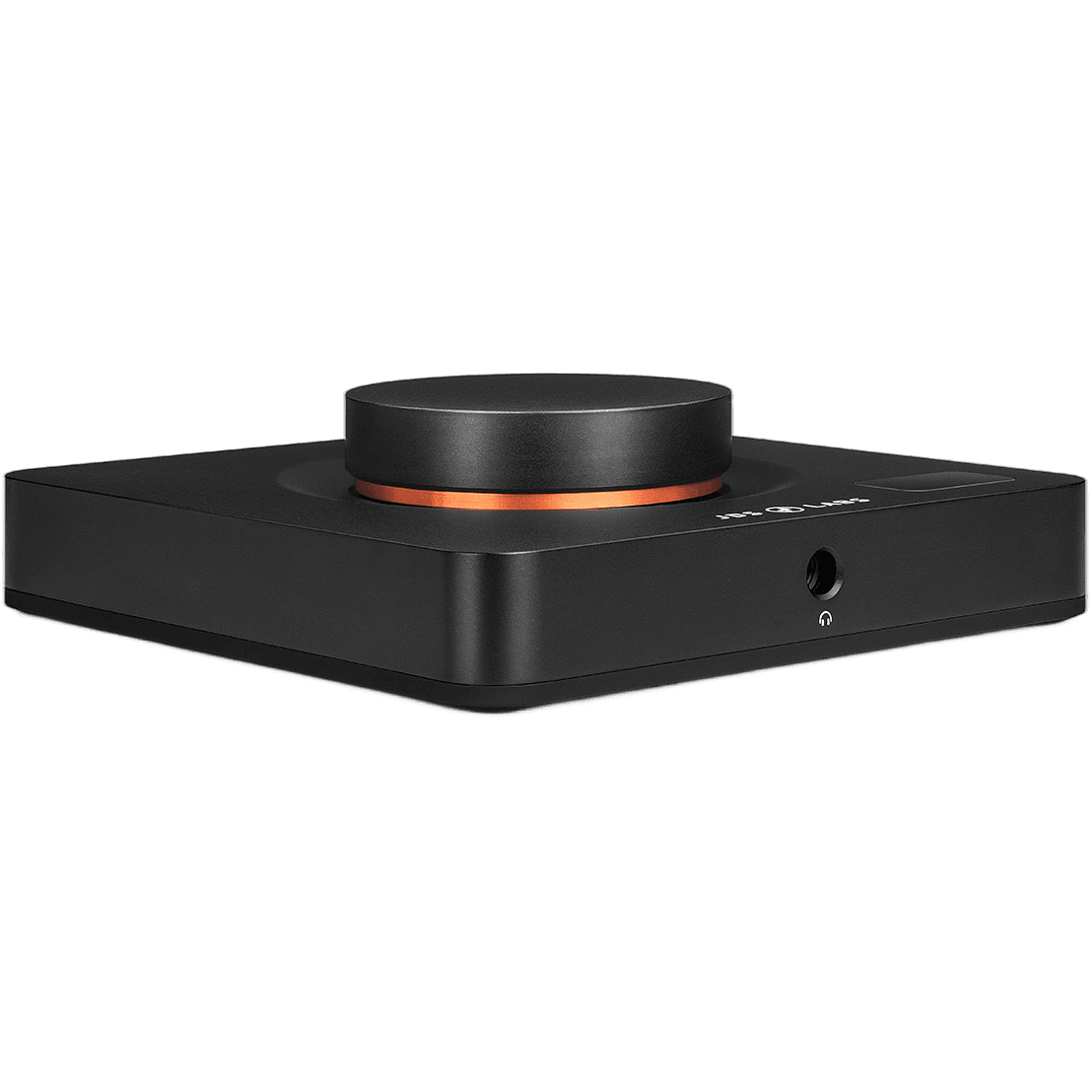

JDS Labs Element IV

Name: JDS Labs Element IV
Brand: JDS Labs

Two independent labs, one verdict: it is transparent and enormously powerful. The argument is about the $549, not the sound.

90/ 100
Review score

14 sourcesUpdated 2026-08-06

$549Typical US price

Score aggregates reviewer opinions across topics.

View product

The short version

What to know.

A US-built one-box desktop DAC and headphone amplifier, $549 (it launched at $499). Two independent Audio Precision labs measured it and landed in the same place: distortion far below audibility and roughly 3.1 W into 32 ohms, close enough to the claimed 3.2 W that the spec is simply true. Output impedance is a fraction of an ohm, the volume control is digital so channel balance is exact at every setting, and reviewers running everything from Campfire IEMs to a HIFIMAN HE6se report the same thing — no hiss, no coloration, plenty of headroom. The headline feature is hardware EQ: 12 parametric bands with per-output profiles, edited in a browser through JDS's Core app and stored on the device itself, so the correction travels with the box to a PS5 or a laptop. Reviewers rate that UI the best of its kind. Against that sit the omissions, which are deliberate and conspicuous at the price: no balanced circuitry (the optional 4.4 mm jack is a connector, not a topology), no remote, no Bluetooth, no coaxial input, an external AC transformer it cannot run without, and a chassis that several reviewers call hot in use. The one real argument is value. Most reviewers call it the best one-box under $1,000; a persistent minority points at a 2013-vintage ESS converter and a wall wart and asks what exactly costs $549.

About this product

The fourth-generation Element (announced November 2024): 3.2 W into 32 Ω from fourteen paralleled OPA1692 output buffers, a second-generation discrete optical volume encoder, USB-C in place of the Element III's USB-B, and 12-band hardware parametric EQ driven from the browser-based JDS Labs Core app. Not the Element III or the Element III MK2 'Boosted', and not the two-box Atom stack. Single-ended throughout: JDS will fit a 4.4 mm jack on request, but the circuit behind it is still single-ended, and the only line outputs are RCA. A Silver Edition with a polished clear-resin knob is $598.

JDS Labs' Element IV is the flagship of an Illinois workshop that has spent nearly twenty years arguing that a good amplifier should have no sound of its own. It is a squat black square with one enormous knob on top, a small OLED window under Gorilla Glass, and a single headphone jack on the front — a deliberate refusal of the switch-covered fascia its rivals wear.

What is genuinely new is inside. The Element IV runs a 12-band parametric equaliser on its own hardware, configured from a browser, saved to the device, and carried with it to any computer, phone or console you plug it into. That, more than the power or the numbers, is what reviewers keep pointing at — and it is also the crux of the argument over the price.

A good fit for

Anyone who wants parametric EQ in hardware — set it once in a browser and it follows the box to another PC, a phone or a PS5, with no EQ APO and no system-level software
Owners of hungry planars or high-impedance dynamics who want one box: 3.2 W into 32 Ω and about 10 VRMS into anything from 32 Ω up
Sensitive-IEM listeners who want a black background plus exact channel balance at very low volumes
Desks that also drive powered speakers — the RCA preamp output keeps its own volume and its own EQ profile, and the knob switches between them
People who want a US-made box with a two-year transferable warranty and direct support from the people who built it
Anyone who has ever been annoyed by a scratchy volume pot

Think twice if

You need balanced output — the circuit is single-ended throughout, and the optional 4.4 mm jack is a connector, not a topology
You want a remote, Bluetooth, a coaxial input, or more than one digital input of each kind
You already EQ in software and just want the cheapest transparent amplifier — a Topping or Schiit stack measures the same for less
You object to configuring your hardware through a browser, or want every setting reachable on-device and offline
Outlet and desk space are tight: it needs a chunky external AC transformer, cannot run from USB-C, and runs warm
You own an RME ADI-2 or similar — you would be trading a deeper feature set for a better knob and more bands of EQ

The reviewer consensus

Agreement &
disagreement.

1 / 7topics divide opinion

2 Strong agreement4 Mostly agree1 Divided opinions

Common ground9

Measurably transparent: SINAD 117–118 dB, THD+N under 0.00025%, and distortion independently measured at roughly −130 dB by Audio Science Review
Genuinely powerful — 3.2 W into 32 Ω claimed, and about 3 W measured independently by two different Audio Precision labs
Output impedance is a fraction of an ohm, so it damps low-impedance loads without changing their frequency response
The digital attenuator holds exact channel balance at every volume, including the whisper-quiet settings where analogue pots fall apart
No audible hiss with sensitive IEMs in any listening report, from Campfire Andromedas down
The 12-band Core parametric EQ is the reason to buy it — stored on the device, separate profiles per output, and the best interface anyone has put on hardware EQ
The volume knob is the most-praised control in its class: a custom optical encoder, no wobble, 0.5 dB steps
Auto gain works — it switches for you at the right level and nobody wants the switch back
Designed and assembled in the USA, with a two-year transferable warranty and support that owners single out repeatedly

Points of contention6

Value: the class benchmark at $549, or a 2013-vintage ESS chip and a wall wart in an expensive box — with a Topping/Schiit stack or an RME ADI-2 named as the alternatives
Whether the omissions are discipline or a shortfall at the price: no balanced circuitry, no remote, no coax, no Bluetooth, and an external AC transformer it cannot run without
Whether Core's browser-and-account model is elegant or a dependency — early critics objected to needing an online account and an internet connection, which later firmware and native phone apps have partly answered
Noise: dead silent in every listening report, but the published numbers were all taken with JDS's $69 Synapse isolator in the USB path, and at least one ASR voter docked the unit over ground-loop noise
Whether it has any sound at all: near-unanimous 'it is a wire with gain', against one reviewer who hears slightly recessed voices and a smoother top end than the Element III
How hot is too hot: several reviewers and owners call it warm-to-hot in use, and disagree on whether that matters

A closer listen.

7 topics · 1 divided

Left: criticalRight: positiveTighter lines: more agreement

Choose a topic

Power

PositiveStrong agreement

Reviewer sentiment7 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The least disputed thing about it. JDS claims 3.2 W into 32 ohms and both independent labs essentially confirmed it — Amir measured a ton of power with no clipping at 33 or 300 ohms, and Headphones.com measured 3 W into 32 ohms with about 10 VRMS available into any load of 32 ohms or higher. In practice that means reviewers ran out of nerve before the amp ran out of headroom: it drove the notoriously stubborn HIFIMAN HE6se V2, the Modhouse Tungsten, DCA planars and the HD 800 S without strain, while still behaving with Campfire Andromedas. The auto-gain scheme flips to high gain as you pass 0 dB so you rarely think about it, and the gain structure is arranged so that maximum volume on the dial is the maximum the amp can cleanly deliver into 32 ohms. The only ceilings anyone found are exotic: Audiophile-Heaven thinks an original HIFIMAN Susvara asks more than it has, and one owner wanted a little more for the quietest passages on an HE6se.

“So if you are hearing distortion, it is in the headphone, and not the amplifier.”
Amir · Audio Science Review

“The JDS Element IV provides up to 3W into a 32 Ohm load, and can deliver up to 10Vrms into any load that is 32 Ohm or higher.”
Cameron Oatley · Headphones.com

“With over 3 watts of power from the quarter-inch jack at 32 ohms, the JDS Labs Element IV proved more than powerful enough for all the over-ear headphones I tested, including the notoriously difficult-to-drive HiFiMAN HE6se V2.”
ecoustics

“It drives everything, including extremely sensitive IEMs like Campfire Audio Andromeda Emerald Sea, demanding IEMs like Craft Ears Omnium, headphones like ZMF Bokeh Open and planars like DCA Noir.”
Michał Sommerfeld · Ear Fidelity

“Power is plentiful, you will be driving all your hard-to-drive headphones, including HIFIMAN HE1000 Unveiled, Susvara Unveiled, although Susvara the Original might be too much for Element IV to handle.”
Audiophile-Heaven

Measured

Manufacturer figures: 3.2 W into 32 Ω (10.18 VRMS), 692 mW into 150 Ω (10.19 VRMS), 174 mW into 600 Ω (10.22 VRMS); output impedance under 1 Ω; auto-toggling gain of 1.0× and 5.0× (+14 dB). Independently corroborated twice — Headphones.com measured 3 W into 32 Ω on an APx555B and Audio Science Review measured no clipping at either 33 Ω or 300 ohms on an APx555, with output impedance described as essentially zero (Headphones.com read it as 0.22 Ω single-ended). Clipping only appears below 32 Ω. Fourteen paralleled OPA1692 buffers on ±17 V rails, fed by an external 17 VAC transformer; the unit will not run from USB-C alone.

Link to this topic

Noise

PositiveMostly agree

Reviewer sentiment7 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Silent where it counts, with one asterisk worth knowing before you buy. Every listening report agrees: no hiss with sensitive IEMs, no hum, no grain — Headphones.com measured 87 dB of THD+N at a 50 mV output into a 12 ohm load, which is IEM territory and only a few dB off the best measuring sources at any price, and about 5 dB ahead of a Chord Mojo 2. Because the volume control is digital, there is also no channel imbalance at whisper level, a failing of most analogue pots. The asterisk is the USB path: Amir found meaningful USB-induced noise until he grounded his analyzer, and cleared the rest by inserting JDS's Synapse isolator — which is a $69 accessory, and which JDS's own spec sheet footnote says was in circuit for every published figure. At least one ASR voter marked the unit down for exactly that. In practice most desktop setups do not show a ground loop, and several owners with noisy gaming PCs report dead-silent backgrounds either way.

“At a 50mV output into a 12 Ohm load to simulate a typical IEM use case, we get 87dB of THD+N, which puts the Element IV among some of the best sources for ensuring as low a noise floor as possible with IEMs.”
Cameron Oatley · Headphones.com

“What I didn’t hear was equally satisfying. No hiss with sensitive IEMs, no grain in the midrange, no congestion during multiple-instrument tracks.”
Yagiz · Headfonia

“Despite this, the Element IV powered them effortlessly, delivering a completely noiseless, black background.”
ecoustics

“Lost points on my vote due to the ground loop + noise, otherwise high marks!”
GWolfman · Audio Science Review

“Even though the FH7 is not a particularly sensitive IEM, I can't hear the noise floor of the amplifier.”
michael E. · verified buyer, JDS Labs

Measured

Manufacturer: 2 µV output noise on low gain, 120 dB SNR, 123 dB dynamic range (A-weighted), −127 dB crosstalk at the RCA outputs, −126 dB USB jitter components, channel balance ±0.01 dB from −∞ to 0 dBFS. Headphones.com measured 120.7 dB SNR, 119.5 dB dynamic range (AES17) and 1.8 µVrms of noise in the audio band (44 µVrms measured out to 1 MHz), and confirmed perfect channel matching at every volume setting because the attenuator is digital. The caveat is in JDS's own footnote — 'All measurements observed via USB C @ 48k with Synapse' — and Amir independently hit USB-induced noise before adding that same $69 isolator.

Link to this topic

Transparency

PositiveStrong agreement

Reviewer sentiment7 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The design goal, and reviewers land on it almost as one: nothing added, nothing taken away. Headphones.com's bench data makes the case directly — performance through the headphone output at 300 ohms is nearly identical to the DAC's own RCA outputs, which is as close to proof of an inaudible amplifier stage as this kind of testing gets — and Amir put distortion at roughly −130 dB, low enough that SINAD becomes a measurement of noise rather than distortion. Listeners describe the same thing in their own vocabulary: a wire with gain, no coloration, nothing pushed forward and nothing rolled off. The single dissent is Audiophile-Heaven, which hears a slightly smoothed top end and voices set marginally back compared with the Element III. Worth knowing, but nothing in the measured behaviour supports it, and the parametric EQ makes any such preference adjustable anyway.

“300 Ohm performance is nearly identical to the DAC outputs themselves, again implying the amplification stage is overall extremely transparent.”
Cameron Oatley · Headphones.com

“The Element IV doesn’t color the music, and it doesn’t try to. Its presentation is as neutral and transparent as ever, carrying forward the same character I appreciated in the Element III but with noticeable improvements in technical execution.”
Yagiz · Headfonia

“It is a wire with gain. It kept the character and tone of the song without limiting them at all.”
Michał Sommerfeld · Ear Fidelity

“In terms of frequency response, the JDS Labs DAC/Amp delivers a neutral sound signature, imparting no noticeable coloration to the audio.”
ecoustics

“The Element IV shines through its powerful, clean, and very neutral presentation, allowing headphones to reach their full potential.”
jeromeoflaherty · Head-Fi

Measured

Manufacturer: SINAD 117 dB on low gain and 118 dB on high gain at 1 kHz, THD+N below 0.00025% across 20 Hz–20 kHz, frequency response ±0.1 dB, linearity ±0.02 dB at −90 dBFS. Audio Science Review measured distortion at about −130 dB — 'vanishingly small', with SINAD then limited by noise rather than distortion — placing it in ASR's 'very competent' DAC tier and above average among headphone amps, and called wideband response and multitone performance excellent to state of the art. Headphones.com found THD+N flat versus frequency at the RCA outputs and effectively flat at the headphone output, with no unusual low-level behaviour. The converter is the same ES9018K2M ESS chip JDS used in the Element III; the maker says it tested the newer ES9038Q2M and AKM parts and got no more performance from them.

vs. listeners — One reviewer of the eight hears a mild character: a smoother, more relaxed treble than the Element III and voices sitting fractionally behind the instruments. Nothing in the frequency response (flat to ±0.1 dB) or the distortion figures gives that a physical basis, and no other source reports it — but if you are upgrading from an Element III specifically for more edge, it is the one contrary impression on record.

Link to this topic

Features

PositiveMostly agree

Reviewer sentiment9 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Split down the middle by design. On one side sits the reason most buyers are here: 12 bands of parametric EQ running on the device's own XMOS processor, with separate profiles for the headphone and preamp outputs, thousands of importable headphone presets, plus configurable loudness, crossfeed and stereo width — all edited in a browser and written to the hardware, so the correction follows the box to another PC, a phone or a PS5. Reviewers who measure for a living call this UI the best in the category and wish everyone did it. Firmware has kept adding: v1.2.0 brought full EQ over the optical input, and Core is now a native Android and iOS app as well as a web page. On the other side is a short, pointed list of things a $549 box does not have: no balanced circuitry anywhere, no remote, no coaxial input, no Bluetooth, one USB-C and one TOSLINK in and RCA out, and an external AC transformer it cannot run without. ASR's sharpest critic laid the whole gap out against an RME ADI-2 DAC, and objected to needing an online account to store presets — a criticism that has aged somewhat, since ten presets now live on the device itself.

“Having EQ built into the device is something which I truly wish more products incorporated.”
Cameron Oatley · Headphones.com

“The main differentiator here beyond the volume control is implementation of Parametric EQ. For people who don't have access to the same in software/player, this is a critical feature.”
Amir · Audio Science Review

“It’s incredible how much support it has.”
Michał Sommerfeld · Ear Fidelity

“No remote control, limited selection of inputs, no balanced outputs, no ultra-low-gain option”
unpluggged · Audio Science Review

“Besides, I don't like the idea of registering an online account just to have basic control of my own device.”
unpluggged · Audio Science Review

“As before, there is no remote, I’m expecting this improvement to come with the next iteration of the Element line.”
Yagiz · Headfonia

Measured

USB-C in (32-bit/384 kHz PCM, DSD64–128, UAC2 with a UAC1 fallback for PS5 and Switch) and TOSLINK in to 24/192; RCA preamp out with its own stored volume and EQ; 255-step digital attenuator in 0.5 or 1.0 dB increments. DSP capacity is 12 stereo bands (24 individual L/R) at 44.1–192 kHz, dropping to 2 bands above that. Ten presets store on the device; more live in an optional Core account. JDS states, and Audio Science Review reports without contradiction, that enabling EQ does not degrade measured performance.

Link to this topic

Ergonomics

PositiveMostly agree

Reviewer sentiment8 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The knob is the star and the reviews are close to embarrassing about it — a custom optical encoder on a steel shaft with fifty per cent more fins than the last one, no wobble, 0.5 dB steps, and acceleration when you spin it fast. Ear Fidelity, who found the Element III's knob loose, says the new one fixes it outright. Pressing it toggles headphone and preamp output, each remembering its own volume and EQ, and the auto-gain scheme means you never choose a gain mode; Amir names it a favourite feature. Against that: the power and output switches live at the back, which Amir finds less convenient than front controls; there is no remote; the OLED menu is terse enough that Core is really the intended interface; Headphones.com flags one genuinely annoying UI bug where disabling an EQ band zeroes its gain instead of bypassing it, which makes A/B comparison awkward. And it runs warm — Audiophile-Heaven says hot enough not to stack anything on it, and an owner cross-shopping an RME found it hotter still, though not uncomfortable to touch.

“It implements one of my favorite features in headphone amplifiers: auto gain setting.”
Amir · Audio Science Review

“The knob feels much better! In Element III, it felt a bit too loose and wobbly for me. The new Element IV solves that completely.”
Michał Sommerfeld · Ear Fidelity

“I couldn’t help but enjoy using the volume knob, sometimes just for fun. It allows for incredibly precise adjustments, with the default setting increasing or decreasing the volume by just 0.5dB per step.”
ecoustics

“the most frustrating of which was that disabling an EQ band does not simply turn it off, but instead sets the gain value to ‘0’”
Cameron Oatley · Headphones.com

“Element IV gets really hot during usage, it is best to not place it on top of another DAC/AMP/Device in general.”
Audiophile-Heaven

“On off and RCA/Headphone switches are in the back as you see. A little less convenient to use than front controls.”
Amir · Audio Science Review

“Additionally, the device runs quite hot (even slightly hotter than the RME) but it seems typical for this class of device”
michael E. · verified buyer, JDS Labs

Measured

Digital 255-step attenuator with 0.5 or 1.0 dB steps and channel balance held to ±0.01 dB from −∞ to 0 dBFS — independently confirmed as perfect channel matching at every level, with none of the low-volume imbalance an analogue potentiometer produces. Gain toggles automatically between 1.0× and 5.0× as the dial passes 0 dB. 5.8 × 5.8 × 1.6 in, 570 g.

Link to this topic

Value

PositiveDivided opinions

Reviewer sentiment10 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Sources split, and not over whether the Element IV is good — over what $549 is buying. The larger camp treats it as the class benchmark: a measurably finished DAC, 3.2 watts of amplifier, and hardware parametric EQ in one American-made box, which Headphones.com calls its outright recommendation for a DAC/amp under $1,000 and ecoustics rates above pricier Schiit alternatives for refinement and adjustability. Ear Fidelity, noting the Element III cost $100 less four years ago, calls the upgrade a steal. The counter-camp starts from the same measurements and asks what justifies the number: an ESS converter first shipped in 2013, an external wall-wart transformer at a price point where rivals integrate the supply, single-ended-only I/O, no remote — and a maker whose Atom line still sells around $130. Cross-shoppers put it against a Topping D50 III plus a Schiit amp for similar money, or against an RME ADI-2 DAC for feature depth. The one number that puts a size on the split is the ASR thread's own poll: of 266 voters, two thirds called it great and a quarter merely fine, with about seven per cent below that.

Measured

The Audio Science Review thread's poll, 266 voters: 66.9% 'Great', 26.3% 'Fine', 5.6% 'Not terrible', 1.1% 'Poor'. Price history: $499 when Amir reviewed it in December 2024, $549 on jdslabs.com as of August 2026, with a Silver Edition at $598 and the Synapse USB isolator — in circuit for every published measurement — a further $69. For context inside the same catalogue, the Atom Amp 2 and Atom DAC+ sit at $129 each.

Where it splits

The best one-box under $1,000 — hardware EQ, real power and US assembly at a fair price80%

“At this pricepoint, personally I’d say there’s little reason to want for more and the Element IV stands as my recommendation for a DAC/Amp combo under $1000”
Cameron Oatley · Headphones.com

Priced above its hardware — an old converter, a wall wart, and no balanced output at $54920%

“$500 and still uses a wall wart? Nice performance, but I'll pass.”
Cogito · Audio Science Review

Link to this topic

Follow the evidence

Sources 14

Read with context

Limitations & method.

As of 2026-08-06

What to keep in mind 6

A read of where the reviews land as of August 2026 — the one-box DAC/amp field moves quickly, and rivals with more bands, more inputs and lower prices keep arriving.
The price has moved since the first reviews: the launch bench tests quote $499, and it is $549 today, so the earliest value judgements were formed at the lower number.
Firmware has answered several of the original complaints — EQ over optical, crossfeed and loudness, presets stored on the device, native phone apps — so criticisms written in late 2024 may describe a product that no longer exists.
The published performance figures were all measured with JDS's $69 Synapse USB isolator in the chain. Most desks will not need it, but it is worth knowing which numbers came from which setup.
Owner reviews on a maker's own storefront skew high — a 4.99 average from 163 people who chose to buy the thing and stayed happy is not the same as a survey.
This is a source and an amplifier, not a transducer. Once the noise floor is inaudible and the power is sufficient, how your system sounds is mostly a question of the headphones you put after it — and how you use the EQ.
