SMSL C200

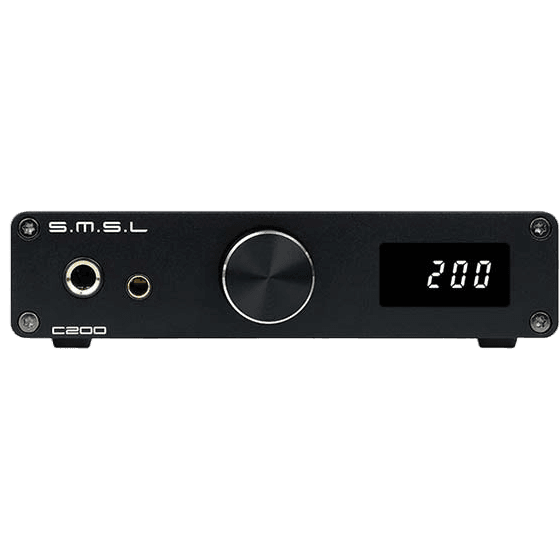

Name: SMSL C200
Brand: SMSL

Measured beyond reproach and argued about anyway — over whether it has a sound, and over what that 4.4 mm jack is really wired to.

16 sourcesUpdated 2026-08-21

$219Typical US price

Score aggregates reviewer opinions across topics.

The short version

What to know.

A compact desktop DAC, headphone amplifier and preamp, listed at $219 and generally sold between about $186 and $210 while it was current. On the bench it is very strong for the money: Audio Science Review put its distortion and noise in the upper part of its excellent band, called linearity textbook perfect, found jitter and multitone in the same class, and rated the headphone output's noise well above average — and the near-zero output impedance is why report after report describes a black background with sensitive in-ears. Every source agrees the connectivity is unusually generous for the size: USB-C, optical, coaxial and LDAC Bluetooth in; RCA and balanced TRS out; seven filters, two gain settings, a preamp mode, a remote, and a machined aluminium chassis that draws no complaints. Two things are genuinely argued about. The first is whether the box has a sound at all — most listeners hear nothing, while a consistent minority describe a mild SMSL warmth or a slightly softened top end. The second is drive: SMSL rates 2.6 watts into 16 ohms and 1.3 into 32, which most reviewers found ample for everything from in-ears to an HE-6, while others ran out of headroom on the hardest planars. Running underneath both is a question of fact the measurements never closed: SMSL sells a 4.4 mm balanced headphone jack, and every independent reviewer who examined it concluded that both front sockets feed the same single-ended amplifier. The menus and the three-digit display collect the steadiest criticism, there is no parametric EQ, and the model has since been replaced by the C200 Pro.

About this product

The original 2022 C200, built exclusively for Aoshida Audio around one ESS ES9038Q2M converter and four OPA1612A op-amps — which is why Audio Science Review files it as the AOSHIDA SMSL C200. It is not the 2025 C200 Pro, which moves to the ES9039Q2M, raises rated power to 3 W into 16 ohms, adds Bluetooth 5.1 and MQA and costs less; and not SMSL's separate DO100 and HO100 boxes, the DL200, or the later RAW-MDA1.

SMSL builds a great many small black boxes, and in 2022 it built one for a shop. The C200 was made exclusively for Aoshida Audio, the retailer whose customer feedback had already shaped SMSL's DO/HO/AO line, and the pitch was compression: take the DO100 converter and the HO100 headphone amplifier, fold them into one 139 mm chassis with the power supply inside rather than hanging off a wall wart, and charge less than either stack.

What arrived was a $219 unit that measured the way gear costing several times as much had measured a few years earlier, and that reviewers had trouble finding fault with. The arguments that did break out are the ones this class always produces — whether a transparent box can still have a character, and how much amplifier counts as enough — plus one plain question of fact that nobody ever settled about what the 4.4 mm socket on the front is actually connected to.

A good fit for

Desks that want a converter, headphone amplifier and preamp in one small box with no wall wart
Sensitive in-ears — the near-zero output impedance and quiet floor are the consistent finding
Listeners feeding active monitors or a power amp, thanks to the switchable line level on RCA and balanced TRS
Anyone who wants optical, coaxial and LDAC Bluetooth alongside USB, plus a remote

Think twice if

You drive the hardest planars and want guaranteed headroom — this is exactly where reports divide
You need a truly balanced headphone stage rather than a 4.4 mm socket on a single-ended amplifier
You want parametric EQ or MQA decoding — neither is here
You are buying new today: the line has moved on to the C200 Pro and the original is hard to find

The reviewer consensus

Agreement &
disagreement.

2 / 7topics divide opinion

1 Strong agreement4 Mostly agree2 Divided opinions

Common ground5

Measures excellently for the money — distortion, noise and jitter all sit below what anyone can hear
A genuinely quiet headphone output with near-zero output impedance, which suits sensitive in-ears
Unusually generous connectivity for the size: USB-C, optical, coaxial, LDAC Bluetooth, RCA and balanced TRS line out, plus a remote and a preamp mode
Machined aluminium chassis with the power supply built in, so no wall wart on the desk
Outstanding performance per dollar at its $219 list price

Points of contention5

Whether it has an audible character at all — most sources hear nothing, a consistent minority hear a mild SMSL warmth and a softened top end
Whether the headphone amplifier has enough drive for the hardest planars, or only for the other ninety percent
What the 4.4 mm front jack actually is — SMSL calls it balanced, every independent reviewer who looked says both front sockets share one single-ended amplifier, and the bench never settled it
How friendly the interface is: praise for the 99-step wheel and remote against a display that shows sample rate instead of volume and menus that need the manual
Whether the value case survives its own successor, which does more for $20 less

A closer listen.

7 topics · 2 divided

Left: criticalRight: positiveTighter lines: more agreement

Choose a topic

Power

PositiveDivided opinions

Reviewer sentiment10 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Sources split, and the split is about what counts as enough rather than about the numbers. SMSL rates the headphone stage at 2.6 watts per channel into 16 ohms and 1.3 into 32, with 0 dB and 11 dB gain settings. Audio Science Review's power-vs-load curves were read as covering the large majority of headphones, and most reviewers agree emphatically: Ichos drove an HD 660S, a Sundara and a Meze 109 Pro with headroom to spare, Soundphile Review found even a HiFiMAN HE-560 easy, iiWi called power a non-issue, and one Head-Fi reviewer ran the notoriously insensitive HE-6 off it happily. Against that, the same ASR review calls output with a Dan Clark Stealth average and concludes the amplifier sits just shy of the top tier, Audiophile Heaven ran short with a HE1000 V2, and the long owner thread contains both an Edition XS owner wondering whether there is enough and another reporting a huge reserve with the same headphone on low gain. Nobody claims this is a several-watt amplifier; what is contested is whether that matters, and for almost everything short of the hardest planars the sources say it does not.

Measured

SMSL specifies 2.6 W × 2 into 16 ohms and 1.3 W × 2 into 32 ohms, gain of 0 dB or 11 dB, and near-zero headphone output impedance. Audio Science Review published power-and-distortion curves into 32 ohms and 300 ohms plus a power-versus-impedance sweep, and read them as covering roughly nine headphones in ten.

vs. listeners — Both camps are reading the same specification, and one measurement outside the review set argues with it: a reader who put a meter on his own unit reported 3.54 volts into 32 ohms before clipping — about 390 mW rather than the rated 1.3 W. That figure is his alone and nobody has reproduced it, but it is the only independent power measurement anyone published, and it points the same way as the reviewers who ran short.

Where it splits

ample for essentially anything you will plug in79%

“Both of these indicate available juice to drive 90% of the headphones out there to very satisfactory levels with superbly low noise and distortion.”
Amir · Audio Science Review

runs out on the hardest planars; short of the class leaders21%

“Even on high gain, the power isn’t quite enough for HIFIMAN He1000 V2, although the volume surely is.”
George Dobrescu · Audiophile Heaven

Link to this topic

Transparency

Leans positiveDivided opinions

Reviewer sentiment9 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The canonical argument about a cheap ESS box, and here it is a real split rather than a rhetorical one. On the bench the case is closed: distortion and noise land in the upper part of Audio Science Review's excellent band, linearity is called textbook perfect, and the sum of distortion and noise sits below what anyone can hear. Four sources say exactly that in listening too — Prime Audio calls the tuning flat and neutral, Soundphile Review calls it indistinguishable from other solid-state devices, audioreviews.org calls it measurement-grade, and Ichos leads with transparent, crystal clear and neutral. Four others hear something. Audiophile Heaven describes a smoothly textured, relaxed presentation with a lean bass it attributes to an SMSL house sound; iiWi reviews puts warmth in its pros list; a Head-Fi reviewer credits a less linear presentation with taming the glare of an HE-6; a later owner-reviewer calls the signature neutral-warmish. Ichos belongs with the first group on his headline but files could be more refined and nuanced and a digital glare that does exist among his cons, which is roughly where the two camps meet.

Measured

Audio Science Review's dashboard puts the C200 in the upper section of its excellent category for distortion and noise, with dynamic range, multitone, intermodulation and jitter in the same class and linearity described as textbook perfect. Seven selectable filters change ultrasonic behaviour and therefore the wideband distortion sweep, but not the audible band.

vs. listeners — The graphs leave no room for a frequency-response tilt, so whatever the warmth camp is describing is not a measured colouration of the output. Nobody in this set listened blind, and two of the four who hear it explain it as a family resemblance across different SMSL products rather than as something specific to this box — which is what a sighted comparison tends to produce. It is worth saying plainly that the two camps mostly agree on the facts and disagree on the words: a presentation one reviewer calls uncoloured is the same one another calls smooth.

Where it splits

measurably and audibly transparent — no sound of its own61%

“Sum of distortion and noise is well below transparency.”
Amir · Audio Science Review

a mild warmth and softness you can hear — the SMSL house sound39%

“C200 is a pretty smooth, clean and natural sounding DAC/AMP, with a relaxing and lean headphone AMP part, and a pretty neutral, though smoothly textured DAC part.”
George Dobrescu · Audiophile Heaven

Link to this topic

Features

PositiveStrong agreement

Reviewer sentiment9 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The reason the box existed, and the least disputed thing about it. For 139 mm of desk it takes USB-C, optical, coaxial and Bluetooth 5.0 with LDAC and aptX HD, and puts out RCA and balanced TRS at line level plus 6.35 mm and 4.4 mm on the front, with two gain settings, seven filters, an adjustable phase-locked loop, independent headphone and line volume memory, a switchable preamp mode and a full remote — all fed by an internal power supply rather than a wall wart. Sources deduct for small, specific things: there is no MQA decoding, no parametric EQ at a time when reviewers were starting to ask for it, and headphone output and line output are an either/or you toggle in the menu rather than a jack-sensing switch. The one real dispute is not about how much is on offer but about what one of the sockets is.

“For a device this small, the SMSL C200 is quite versatile and offers a lot of input and output options.”
Riccardo Robecchi · Soundphile Review

“Choose between headphone out or line preamp out, but not both.”
Durwood · audioreviews.org

Measured

SMSL's own page lists the ES9038Q2M converter, a second-generation XMOS receiver good for native DSD512 and PCM to 32-bit/768 kHz, four OPA1612A op-amps, an internal switching supply plus discrete linear supplies for the analogue side, and Japan Audio Association Hi-Res certification. The line outputs are specified at 4 Vrms on TRS and 2 Vrms on RCA with 100 ohms output impedance.

vs. listeners — SMSL sells the front socket as a 4.4 mm balanced output. Four independent reviewers, working separately, concluded it is not one: Ichos calls it just for utility since the amplifier is single ended, audioreviews.org says it brings no improvement in channel separation or output power, iiWi says neither the 4.4 mm nor the rear TRS is truly balanced, and Soundphile Review reasons from the single converter that true balanced operation is not possible. On the rear line output the picture is clearer than parts of that coverage suggest — the TRS pair genuinely is balanced, and Audio Science Review measured it as such, so iiWi's broader claim that neither output is balanced overreaches. On the headphone jack, the bench never ruled: asked on publication day whether the 4.4 mm was merely a convenience, the reviewer replied that he had assumed the socket was 3.5 mm, had not measured it, and would report back — and the published review still carries no 4.4 mm figure. The clearest statement in the record came three years later from a forum regular answering an owner, and the Pro revision, which changed the converter and raised the power, kept the same arrangement.

Link to this topic

The hardware

Specifications.

Checked 2026-09-22

Design

Form factor: Desktop
DAC: ESS ES9038Q2M · Delta-sigma
PCM: 768 kHz / 32-bit
DSD: DSD512
Amplifier: Solid-state

Output

Gain settings: 2

Connection

Digital inputs: Optical, Coaxial, Bluetooth
Headphone outputs: 6.35 mm, 4.4 mm
Line outputs: RCA, 6.35 mm TRS
Bluetooth: YesLDAC, aptX HD, SBC, AAC
Power: Mains (internal PSU)

Physical

Weight: 510 g
Dimensions: 139 × 147.5 × 32 mm

Manufacturer-published figures, not measurements · from aoshida-audio.com.

Follow the evidence

Sources 16

Read with context

Limitations & method.

As of 2026-08-21

What to keep in mind 7

The only star rating anywhere for this model — a flat 5 out of 5 from 121 reviews — sits on the store page of the shop that commissioned it, so treat it as a sign its buyers were happy rather than as a score.
This is a read of where the reviews landed as of August 2026, on a box that arrived in 2022 — the budget desktop field has moved a long way since.
Most of the published reviews were written on units supplied by the shop that commissioned the product, which tends to tilt coverage warm; the years of owner posts on the measurement forum are the counterweight here.
Hearing warmth in a converter is famously easy when you know which box is playing, and nobody in this set listened blind — treat the split on character as a description of how people wrote about it, not a settled fact.
Whether the amplifier has enough power depends entirely on what you plug in: the headphones people tested with run from 32-ohm in-ears to an HE-6, and that range is most of the disagreement.
The awkward reports — an occasional unstable unit, a faint whine at standby, pops when a PC goes idle — come from a handful of people out of a very large thread. Real, worth knowing, not the common experience.
The original C200 has been replaced by the C200 Pro, so prices and availability you find today may have little to do with the ones quoted here.
