Moondrop Dawn Pro

Moondrop Dawn Pro

The default first dongle — and the one whose clean bench sheet turned out to have been measured at the wrong volume.

The 2023 dual-CS43131 dongle with both 3.5 mm and 4.4 mm outputs and volume buttons. Not the original Dawn, which came as separate 3.5 mm or 4.4 mm versions on a fixed cable with no buttons, and not the 2025 Dawn Pro 2, which moves to dual CS43198 and adds an 8-band parametric EQ. Reviews of all three circulate under similar names.

OverreviewDAC / Amp20 sourcesas of 2026-09-06

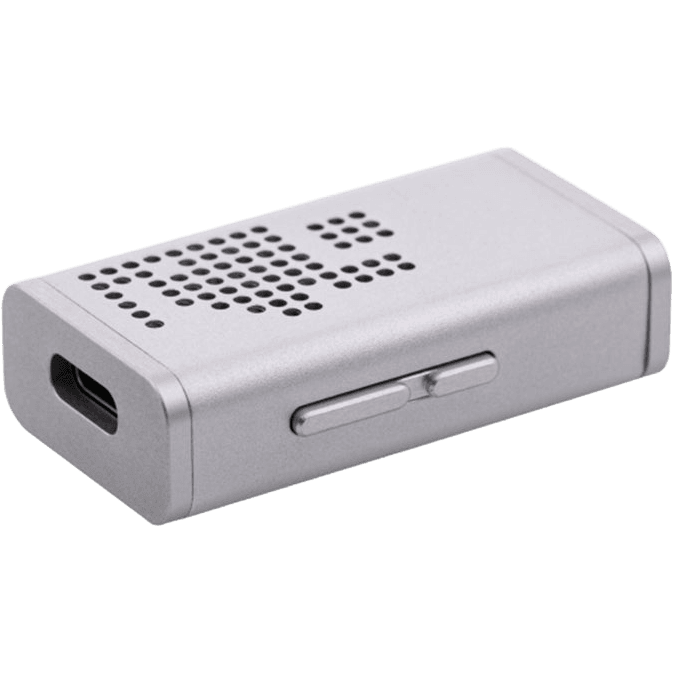

Moondrop's Dawn Pro is a USB-C dongle DAC and headphone amplifier the size of a house key: 42 × 22.45 × 12.39 mm, 13 grams, CNC-machined aluminium with a row of drilled vents on top and a status LED glowing through them. Inside are two Cirrus Logic CS43131 converters, each an integrated DAC and headphone driver in a single chip. Outside are a 3.5 mm single-ended jack rated at 2 Vrms, a 4.4 mm balanced jack rated at 4 Vrms, a detachable USB-C cable, and two volume buttons that step the hardware volume in a hundred increments independently of whatever phone or laptop is feeding it.

It launched in August 2023 at $49.99 into a market already crowded with dual-CS43131 dongles, and became the one people named first — the answer to what should I buy after the Apple adapter. Two years later a long-running measurement project at Audio Science Review worked its way through the Cirrus Logic catalogue and put the Dawn Pro on a list it would rather not be on. What that finding does and does not mean is most of what there is left to argue about.

The overview

A roughly $60 USB-C dongle with more on it than the price suggests: dual CS43131 converters, single-ended and balanced outputs, and a hundred-step hardware volume control that runs independently of the host device. Sources agree almost completely on two things — the output is genuinely silent, staying black even behind IEMs sensitive enough to hiss on most gear, and the package is a lot of hardware for the money. They divide on three. Power splits by load rather than by taste: the device is voltage-limited, so 300-ohm Sennheisers are comfortable on the balanced jack while low-impedance planars and a few demanding IEMs run it out of room and into clipping. Voicing splits the usual way, with about half of the sources hearing nothing at all and about half hearing a mild warmth with a slightly bright edge. And the build splits cleanly down one component: the aluminium shell is praised by everyone who mentions it, and the volume buttons are a known failure point that owners report going slack, sticking, or collapsing into the case. One further thing belongs in any buying decision. The Dawn Pro is on the list of Cirrus Logic devices measured to produce the low-level distortion nicknamed the "Cirrus hump" — an artifact that appears well below full scale, which is why the earlier bench runs at full scale missed it. Selecting no digital filter avoids it, and Moondrop, unlike some rivals using the same converters, has not shipped a firmware option for it.

Where they agree

  • The output is genuinely silent — no hiss even behind IEMs sensitive enough to hiss on most other gear
  • A lot of hardware for the money: 3.5 mm and 4.4 mm outputs, four filters, two gain modes, a detachable cable
  • The hundred-step hardware volume, independent of the phone or laptop, is the single most-praised feature
  • It stays cool in ordinary use, and it is small and light enough to forget about
  • Steady-state measured performance matches Moondrop's published figures

Where they split

  • Power is either ample or short depending on the headphone — 300-ohm dynamics are fine, low-impedance planars are not
  • Voicing: about half the sources hear a genuinely uncoloured source, about half hear a mild warmth with a bright edge
  • Build: a well-made aluminium object, or a good shell let down by buttons that are known to fail
  • Value: an outright bargain for almost everyone, superseded by fixed-in-firmware rivals for the measurement-minded
The verdict, mappedEvery aspect on one axis — criticized to praised. Hover a point for its spread; click to jump.
CriticizedNeutralPraised

By aspect — in detail

Power

Contested · 11 src

Sources split, and the split is a property of the load rather than a matter of opinion. The Dawn Pro runs out of voltage, not current, which means high-impedance dynamic headphones are comfortable — the 300-ohm Sennheisers, the HD 490 Pro, the HE400SE all get driven, and reviewers listening there sound relaxed about it. Point it at a low-impedance planar or a hungry multi-driver IEM on the balanced jack and it runs short, audibly so. Nobody is contradicting anybody; the two groups plugged in different headphones.

Measured

Moondrop rates the outputs at 2 Vrms single-ended and 4 Vrms balanced. Working from those figures, ASR's AnalogSteph derives roughly 13 mW into 300 ohms single-ended and 53 mW per channel balanced, and places the voltage limit at about 128 ohms on the 3.5 mm jack and 256 ohms on the 4.4 mm.

Where it splits
voltage-limited, so 300-ohm dynamics and ordinary IEMs are comfortable57%

In any case, you can see that the thing is utterly unimpressed by 300 ohm cans, and seemingly entirely voltage-limited.

AnalogSteph · Audio Science Review
runs short on low-impedance planars and demanding loads43%

I tried this with my Moon Drop Para Planer headphone which has 8Ohm Impedance, Unfortunately it can't drive it well even with balanced cable.

seanyang · Audio Science Review

Noise

Strong consensus · 7 src

The clearest agreement in the whole set. Reviewers reach for the most sensitive IEMs they own — Campfire Andromeda, Campfire Solaris, Shure SE846 — and report nothing at all. No source in this set reports hiss, hum, or low-volume channel imbalance from the Dawn Pro itself, and the low-gain mode is repeatedly described as giving usable steps at very quiet listening levels rather than jumping from silent to loud.

I'll start by noting that despite this DAC's impressive power output, there's no noise floor to speak of, even when playing super sensitive IEMs, like the Campfire Andromeda.

Gabby Bloch · Major HiFi

I got the Shure SE846 today and even though they are 9Ω and 114db/mw, there is 0 Noise. The 4.4mm is pitch black, nothing.

Vamp898 · Audio Science Review

It does have a very low SNR so it can easily handle sensitive IEMS such as the Campfire Audio Solaris

Cheryl · Headfonics
Measured

Moondrop publishes a background noise figure of 1.3 µV on the balanced output and 1.5 µV single-ended (AES17, 20 kHz), with an A-weighted SNR of 131 dB and 123 dB respectively.

Transparency

Contested · 10 src

Sources split on whether the thing has a voice. One camp — including the reviewer who volume-matched it against another dongle to within a tenth of a decibel, and an owner who compared it to a desktop DAC and heard no difference — says it adds nothing. The other camp, drawn from both magazines and owners, consistently describes the same mild tilt: a touch of warmth with a slightly bright, energetic top. Separately, and not a matter of opinion, the Dawn Pro is on the list of Cirrus Logic devices measured to produce the low-level distortion known as the Cirrus hump, with a filter setting that avoids it.

Measured

Steady-state performance measures as specified: a self-bought unit run on an Audio Precision APx555 returned figures its owner called "almost exactly the same as the Moon Drop official measurement," against a claimed THD+N of 0.00014% unloaded. Separately, a cross-device study of Cirrus Logic CS431xx converters at Audio Science Review lists the Dawn Pro among the devices that DO produce the low-level "Cirrus hump" distortion, with the note "Not producing distortion in NOS mode" — that is, with no digital filter selected.

⚠ vs. listeners — The two measurement results are not in conflict; they were taken at different signal levels. The clean APx555 multitone runs were made at 0 dBFS and -1 dBFS, and the artifact appears well below full scale — one member put the range at roughly -6 to -27 dBFS, and the study's own worst case is around -20 dBFS. The audibility question resolved the same way: the member who initially reported hearing no distortion on any filter retested in a room below 30 dB ambient, found it easy to hear, and confirmed that selecting no filter removed it at every volume he tried.

Where it splits
a genuinely uncoloured source — it adds nothing58%

The Moondrop Dawn Pro is a neutral and uncolored source device.

Alec · Bedrock Reviews
a mild voice — warmth with a slightly bright, energetic edge42%

The sound signature is relatively neutral but with a subtle boost to presence and intensity, which gives the music some extra strength and vigour.

David Becker · Prime Audio

Features

Strong consensus · 8 src

Consistently rated as more hardware than the price implies, with one gap every source names. Both a 3.5 mm and a 4.4 mm output on a $50 dongle, a hundred-step hardware volume that stays independent of the host, four digital filters, low and high gain, switchable USB Audio Class 1.0 and 2.0 for things like the Nintendo Switch, and a detachable cable. The gap is that gain and filters live only in Moondrop's app — there is no physical switch — and the outputs cannot be used simultaneously, since both converters are needed for the balanced jack. There is no parametric EQ; that arrived with the Dawn Pro 2.

100 Step Volume Adjustment is just a lifesaver, I often use only 2-3 Steps to correct my volume.

Argha · Head-Fi

The Moondrop Dawn Pro does not implement headset controls or pause on headphone disconnect functionality, nor does it send connector status to the host device.

Alec · Bedrock Reviews

Ergonomics

Moderate · 10 src

The weakest part of the experience, and the sources are unusually united about why. The hardware volume control itself is praised without exception — fine steps, independent of the phone, easy to set precisely. Everything around it draws complaints: the buttons feel slack and rattle when the unit is shaken, and the Moondrop Link app that holds the gain and filter settings is called buggy, laggy or worse by every source that opens it. Heat is a minor and mostly favourable note — several reviewers stress that it stays cool, though one found it warms up if left in a pocket.

You have to install and depend on an app called 'Moondrop Link', which is super buggy and not user-friendly at all.

arifgraphy · Head-Fi

the problem is that these buttons are kind of slack, making that little rattling noise when you shake the dongle

IEMs and Music

Build

Contested · 9 src

Sources split, and the split lands on one component. The chassis draws praise from everyone who describes it: machined aluminium, dense for its size, with firmly seated jacks. The volume buttons are a different story — they are reported loose from new by several reviewers, and reported failing outright by owners, with Amazon's own summary of 763 ratings classing build quality, reliability and volume control as mixed while sound, value and power all come back positive. The clearest statement of the problem comes from an outlet reviewing the successor, which carried the same button over unchanged.

Where it splits
a genuinely well-made aluminium object for the money34%

The feel of the case is exquisite. The Dawn Pro has a solid build with its brushed aluminum finish.

Cheryl · Headfonics
a good shell let down by buttons that are known to fail66%

The original Dawn Pro was notorious for its buttons failing or falling into the case over time.

Yagiz · Headfonia

Value

Contested · 9 src

Near-unanimous, with one substantive dissent. Eight of the nine sources that address price call it a bargain or the best of the cheap dual-CS43131 dongles, and Amazon's owner summary classes value for money as positive across 37 mentions. The dissent is not about sound quality: it argues that rivals using the same converters shipped firmware to disable the feature behind the low-level distortion — and in some cases added parametric EQ, for less money — while Moondrop did not, which changes the calculation for a 2023 product bought today.

Where it splits
an outright bargain at the price90%

The Moondrop Dawn Pro is a bang-for-the-buck portable DAC, easily recommendable as either a main portable DAC or as a backup.

Cheryl · Headfonics
superseded — cheaper rivals fixed the distortion in firmware and added EQ10%

So first off the Moondrop Dawn Pro is non-recommendable anymore due to elevated distortion levels found in a lot of modern Cirrus Logic DAC chips based devices (CS43131 in this case).

FromWitchSide · r/HeadphoneAdvice

Best for

  • Anyone stepping up from a phone adapter who wants a balanced output without spending much
  • Owners of very sensitive IEMs, where the silent output and fine low-gain volume steps matter most
  • Listeners with high-impedance dynamic headphones who want something pocketable to drive them
  • People who want the volume control on the dongle rather than buried in the phone's steps

Skip if

  • You mainly drive low-impedance planars or unusually hungry IEMs — this runs out of room there
  • You want the low-level Cirrus Logic distortion dealt with in firmware rather than by choosing a filter
  • You want parametric EQ on the device, which the Dawn Pro 2 and several rivals now offer
  • You need the controls to be bulletproof — the volume buttons are the part owners report failing

At a glance

Consensus
71 / 100weighted mean across 20 sources — an aggregate, not a single verdict
Type
DAC/Amp
Sources
20 · 5 classes
As of
2026-09-06
Owner rating
4.2/5 · 763self-selected — skews high

Where to buy

Sources20 reviews across 5 classes. Weight reflects expertise × independence; echoes collapsed.
  1. s1On the Distortion of Cirrus Logic CS431xx-Based Devices: A Comparative Reviewjkim · Audio Science ReviewMeasurement2025-05-21w1.00
  2. s2Dual-tone (41 Hz / 89 Hz) test of a Moondrop Dawn Pro, which added it to the affected-device listcyril_meysson · Audio Science ReviewMeasurement2025-06-08w0.95
  3. s3(Unofficial) Moon Drop Dawn Pro Balanced DAC/Headphone AMP Measurements — Audio Precision APx555seanyang · Audio Science ReviewMeasurement2024-05-28w0.95
  4. s4Moondrop Dawn Pro at 300 ohm? — derived output power and the voltage limitAnalogSteph · Audio Science ReviewMeasurement2024-10-05w0.85
  5. s5Moondrop Dawn Pro ReviewAlec · Bedrock ReviewsEditorial2023-09-30w0.85
  6. s6MOONDROP Dawn Pro ReviewCheryl · HeadfonicsEditorial2023-10-20w0.75
  7. s7Moondrop Dawn Pro ReviewDavid Becker · Prime AudioEditorialaffiliate2023-11-09w0.60
  8. s8Moondrop Dawn Pro ReviewGabby Bloch · Major HiFiEditorialaffiliate2023-11-02w0.55
  9. s9MOONDROP DAWN PRO REVIEWIEMs and MusicEditorialaffiliate2023-11-01w0.60
  10. s10Moondrop Dawn Pro — eight showcase reviews, mean 4.63/5Head-FiCommunityunknownw0.60
  11. s11Dawn Pro measurement thread discussion — noise with sensitive IEMs, datasheet limits, button reportsAudio Science ReviewCommunity2024-06-23w0.70
  12. s12MOONDROP Dawn Pro Portable USB DAC/AMP — owner ratings and per-topic sentimentAmazonOwnerunknownw0.70
  13. s13Faulty Cable, Glitches, and Broken Buttons — 1-star verified purchaseJosh G · AmazonCritical2024-11-28w0.50
  14. s14Is the Moondrop Dawn Pro portable amp any good — the case against buying one nowFromWitchSide · r/HeadphoneAdviceCritical2025-09-18w0.60
  15. s15Cirrus hump listening test on a Dawn Pro — inaudible at first, then clearly audible, and cured by no filterGitfiddle · Audio Science ReviewCommunity2025-07-15w0.60
  16. s16Moondrop Dawn Pro 2 Review — on the button the successor carried over unchangedYagiz · HeadfoniaEditorial2025-11-11w0.70
  17. s17Moondrop Dawn Pro — sound is noticeably less good than the 3.5mm input on my s10+r/HeadphoneAdviceCritical2024-12-16w0.35
  18. s18Moondrop Dawn Pro Review: The Best Budget DacKindlefirehditaly · MobileaudiophileEditorialaffiliate2023-12-28w0.10
  19. s19MOONDROP DAWN PRO USB DAC/AMP — published specificationsMoondropEditorialsponsoredw0.30
  20. s20Moondrop Dawn Pro Review: Dongle DAC Value Kingdarmanastartes · r/headphonesCommunity2023-09-30w0.10

Limitations & method

Consensus-of-sources synthesis · as of 2026-09-06 · not a measurement verdict or ground truth.
