DAC / AmpOverreview

FiiO KA17

Name: FiiO KA17
Brand: FiiO

The dongle that behaves like a desktop amp — including the heat, the appetite for power, and a menu with more ambition than its software.

31 sourcesUpdated 2026-09-30

$145Typical US price

Score aggregates reviewer opinions across topics.

Check price on Amazon

As an Amazon Associate, we earn from qualifying purchases.

The short version

What to know.

A roughly $145 USB-C dongle DAC/amp built around two ESS ES9069Q converters and THX AAA 78+ amplification, with a screen and on-device menu, eight filters, a ten-band parametric EQ, a coaxial digital output and a desktop-mode switch fed by an optional second power port. Sources agree that it is unusually powerful for a dongle — enough for most full-size headphones, if not quite a desktop amplifier with the hardest ones — and that it is well built, if chunky and sharp-cornered. They split on four things. How livable it is splits on heat and battery: most reviewers and owners find it runs hot and drains the host two to three times faster than rival dongles, and a few have hit its thermal cut-out, while others use it cased in desktop mode for hours without a warning. The feature set splits between the hardware, which everyone praises, and the software: bench tests show the parametric EQ applies the wrong filter shapes, and some Windows owners lose playback entirely when EQ is on. Noise splits between a silent floor for nearly everyone and pops, crackle or interference in specific setups. And its voice splits three ways — neutral with a touch of warmth, forward and a little clinical, or no audible character at all, which is what the limited bench data supports.

About this product

FiiO's flagship USB dongle from January 2024, sold in black or blue. Not the cheaper KA15 or KA13, not the BTR17 (the Bluetooth receiver that shares its converters and amplifier), and not the QX13 that followed it. Behaviour depends on firmware: units on V2.0 or later have play/pause buttons, browser-based EQ and app control that launch units lacked.

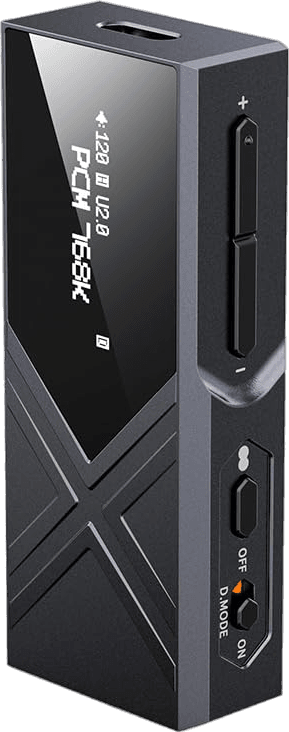

FiiO's KA17 is a USB-C DAC and headphone amplifier about the size of a small lighter: 64 × 27.7 × 12.7 mm and 33.5 grams of aluminium and glass, with a small dot-matrix screen, a volume rocker, a menu button and a slider marked D.MODE. Inside are two ESS ES9069Q converters and THX AAA 78+ amplifiers; outside are a 3.5 mm output that doubles as a coaxial digital out, a 4.4 mm balanced output, and a second, orange USB-C port whose only job is to take power from a charger or power bank so the dongle stops drinking from your phone.

That desktop-mode idea is the whole pitch. Flip the switch and the balanced output is rated at 650 mW into 32 ohms — figures reviewers had not seen from a dongle when it launched in January 2024 at $149.99. It became the reference point other dongles were measured against, and it also became the dongle people warn each other about: it runs warm to hot, it draws far more from the host than its rivals, and its parametric equaliser has spent two years attracting bug reports.

A good fit for

Desk-bound listeners who want dongle-sized amplification for full-size headphones and will feed the power port
IEM users who want a silent background plus power in reserve
People who want filters, gain, balance and EQ presets adjustable from the device itself
Android and Windows users comfortable updating firmware and checking the EQ does what they expect

Think twice if

You want a pocket dongle that stays cool and barely touches your phone's battery
You are buying it specifically for accurate parametric EQ — use a player or system equaliser instead
You use an iPhone older than the 15 series and want desktop mode without a second cable
You need an in-line microphone for calls

The reviewer consensus

Agreement &
disagreement.

4 / 7topics divide opinion

3 Mostly agree4 Divided opinions

Common ground4

Unusually powerful for a dongle — 650 mW balanced in desktop mode drives most full-size headphones to loud levels
A silent background with sensitive IEMs for nearly every reviewer and owner
Well built from aluminium and glass, with a useful screen, physical buttons and a case in the box
The external power port and desktop mode are a genuinely useful idea for desk use

Points of contention4

How livable the heat and battery drain are: most find it hot and power-hungry, some run it cased in desktop mode without complaint
Whether the features deliver: a deep hardware feature set against a parametric EQ that measures wrong and sometimes breaks playback on Windows
Noise: silent for most, but pops, crackle or interference in particular setups
Its voice: neutral with some warmth, forward and slightly clinical, or no audible character at all

A closer listen.

7 topics · 4 divided

Left: criticalRight: positiveTighter lines: more agreement

Choose a topic

Power

PositiveMostly agree

Reviewer sentiment14 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The reason most people buy it, and the broadest point of agreement. Reviewers repeatedly call it the most powerful dongle they have tested, and it drove everything from IEMs to planars and a Final D7000 to loud levels. The caveats are specific: the headline figure needs desktop mode on the balanced output, older iPhones need the external power port before desktop mode will engage at all, and reviewers with the hardest full-size headphones heard them get loud rather than reach their best. One owner who measured it thinks FiiO's own figures are optimistic.

“the FiiO KA17 can now be crowned the most powerful USB DAC dongle that I ever reviewed”
NanoTechnos · Headfonia

“Although the more challenging over-ear headphones didn't perform as well as with a dedicated desktop amplifier, the sound was still enjoyable.”
The Honest Audiophile

Measured

FiiO rates desktop mode at 650 mW balanced and 270 mW single-ended into 32 ohms, falling to 300 mW and 140 mW in standard mode, with 4.5 Vrms and 3 Vrms maximum output; Reference Audio Analyzer measured 3.0 Vrms from the 3.5 mm output at 0 dBFS. An ASR member's own bench, limited to a 30-ohm load, found the cleanest operating point at about 45 mW. FiiO's FAQ says desktop mode needs the external power port with iOS devices other than the iPhone 15 series.

vs. listeners — Two quibbles with the maker's numbers. The ASR member who measured his unit wrote that FiiO's published figures look overstated despite its Audio Precision graphs. And Audioreviews points out that the 90 mW rating into 300 ohms is more than the stated 4.5 Vrms can deliver (about 67 mW) — immaterial for most headphones, but not a figure to plan around for high-impedance ones.

Link to this topic

Transparency

Leans positiveDivided opinions

Reviewer sentiment15 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Sources split three ways on whether the KA17 has a voice. The largest group hears it as essentially neutral with a little extra body or warmth — FiiO's house sound, but gentler than its older ESS dongles. A second group hears the opposite tilt: forward, energetic, a bit clinical in the treble, with the ESS character some listeners call glare. A small third group hears nothing to describe, and the one independent distortion measurement sides with them. One reviewer who compared notes put it well: he had seen it called clinical and warm in equal measure, and heard it as nearly linear.

Measured

An ASR member measured best THD+N of -109 dB (0.00034%) at -12 dBFS, about 45 mW into a 30-ohm load. FiiO's own published curves show the response flat within 0.1 dB from 20 Hz to 20 kHz on both outputs. Reference Audio Analyzer's line-out suite covers frequency response, distortion and crosstalk in graph form.

vs. listeners — What is measurable says flat and low in distortion, which fits the smallest camp. The two larger camps describe opposite tilts from the same device, and reviewers in both camps often use both words — 'clinical with some warmth in the lower mids', 'sharp and clinical' treble alongside 'very neutral' — which suggests they are describing transient character and pairing rather than a frequency-response tilt the bench can see.

Where it splits

essentially neutral, with a touch of warmth and body47%

“It’s a mix of modern ESS vividness and some warmth that’s a hallmark of FiiO electronics.”
Rudolfs Putnins · Audioreviews

forward and a little clinical — an ESS edge up top35%

“It seems the KA17 has an aggressive edge and seems to produce sound with a higher level of presence.”
Louis · Headfonics

clean and uncoloured — nothing to hear but the recording18%

“my measurements show that the best THD+N is -109 dB (0.00034%) at -12 dBFS, which is about 45 mW of output power”
johny_2000 · Audio Science Review

Link to this topic

Features

Leans positiveDivided opinions

Reviewer sentiment16 supporting sources

CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

Sources split between the hardware and the software. On paper and in the menu it has everything: eight filters, 60 or 120 volume steps, channel balance, a volume limiter, UAC 1.0 for consoles, coaxial digital out, three user EQ slots you can switch from the device itself, and an external power port nobody else offered. The dissent is about whether the headline equaliser does what it says. Two ASR members measured its filters and found the wrong shapes applied; FiiO has not fixed it and stopped answering; and some Windows owners find that turning EQ on stops playback. Smaller limits recur: no app control from an iPhone, no microphone support, no coaxial out in UAC 1.0 mode, and no MQA or DSD with EQ on.

Measured

jkim's ASR measurements (August 2025) found the KA17's peak filters translating Q incorrectly — Q = 1.0 behaving like Q = 0.707 — and its low-shelf Q mistranslated as well; d1m0n's REW measurements found the same deviation growing with gain, still present on firmware V2.25. FiiO applies an automatic -12 dB preamp when EQ is on, which jkim calls a bad design because it is undocumented.

vs. listeners — Launch-era software complaints (no play/pause, an app that only reached the EQ) were fixed in V2.0 in April 2024 and should not count against a current unit. The EQ faults are later: FiiO's staff acknowledged an EQ problem on Head-Fi in February 2025, and the ASR measurers reported no response from FiiO by October 2025.

Where it splits

the deepest feature set in the class, and most of it works from the device66%

“One of the most intriguing features available within the FiiO’s KA17’s menu is a set of eight selectable digital filters along with twelve EQ presets. That’s a lot of sonic control.”
Louis · Headfonics

the software undercuts it — the PEQ measures wrong and can break playback34%

“My advice is that one should not buy a FiiO product for its DSP/PEQ feature unless its functionality is thoroughly tested by a third party.”
jkim · Audio Science Review

Link to this topic

The hardware

Specifications.

Checked 2026-09-30

Design

Form factor: Dongle
DAC: ES9069Q ×2 · Delta-sigma
PCM: 768 kHz / 32-bit
DSD: DSD512
MQA: Yes
Amplifier: Solid-state · THX AAA 78+

Output

Output power: Single-ended: 320 mW @ 16 Ω · 270 mW @ 32 Ω · 30 mW @ 300 ΩBalanced: 460 mW @ 16 Ω · 650 mW @ 32 Ω · 90 mW @ 300 Ω
Output impedance: < 1 Ω SE · < 1.5 Ω bal.
Gain settings: 2
Signal-to-noise: ≥ 126 dB
EQ: Parametric, 10 bands

Connection

Digital inputs: USB-C
Headphone outputs: 3.5 mm, 4.4 mm
Line outputs: Coaxial
Power: USB bus power, External power supply

Physical

Weight: 33.5 g
Dimensions: 64 × 27.7 × 12.7 mm
Released: 2024-01

Output power figures are FiiO's desktop-mode ratings; standard mode is roughly half. Manufacturer-published figures, not measurements · from fiio.com, fiio.com, head-fi.org.

Follow the evidence

Sources 31

Read with context

Limitations & method.

As of 2026-09-30

What to keep in mind 7

A read of where the reviews land as of September 2026. The KA17 has been on sale since early 2024, and newer dongles — including FiiO's own QX13 — have moved the comparisons on.
Firmware matters here. Early units lacked play/pause and most app control, which later updates added; the equaliser problems described above were still being reported on the latest firmware as this was written.
There is no full independent bench test of this dongle, so the power and noise figures are mostly FiiO's own, checked against owner measurements where they exist.
Almost every published review worked from a unit the maker supplied, and review scores run well above what the buying public reports.
Owner star ratings skew positive, since they mostly come from people who chose to buy it.
Heat and battery life depend heavily on how you use it — desktop mode, the case, your phone, the room — so one owner's 'barely warm' and another's thermal cut-out can both be true.
How it sounds is described very differently by different listeners, and pairing with your own headphones or IEMs is likely to matter more than any single description here.
