FiiO K11 R2R

FiiO K11 R2R

The cheapest ticket into R2R 'analog' sound — loved for its warmth, side-eyed for its measurements.

FiiO's R2R (resistor-ladder DAC) version of the K11 — not the original K11, which uses a Cirrus Logic CS43198 delta-sigma DAC. Same chassis and most features, but a different converter, a warmer voicing, NOS/OS modes in place of the digital-filter menu, and roughly $40 more.

OverreviewDAC / Amp9 sourcesas of 2026-07-14

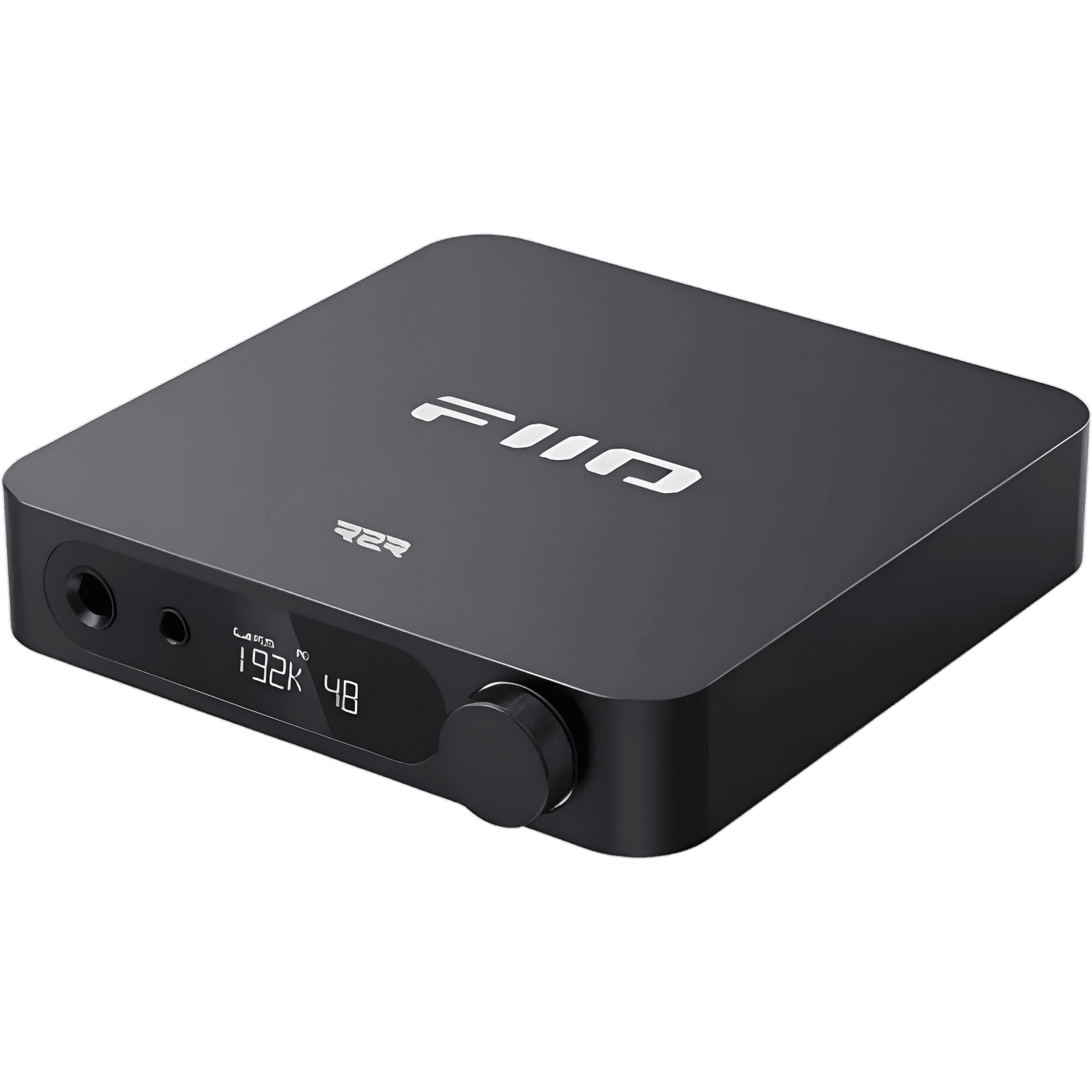

FiiO's K11 R2R is the company's first resistor-ladder DAC/amp — a compact ~$160 desktop box that swaps the original K11's Cirrus Logic delta-sigma chip for an in-house R2R module, the conversion method usually reserved for far pricier gear, with switchable non-oversampling (NOS) and oversampling (OS) modes.

It made 'R2R sound' cheap, and that's exactly why it's polarizing: subjectivists prize its organic warmth while the measurement crowd points to a modest ~72 dB SINAD. Almost everyone agrees the DAC — not the merely adequate built-in headphone amp — is the reason to buy it.

The overview

FiiO's first resistor-ladder (R2R) DAC/amp, around $160, built to bring 'R2R sound' to a budget price by replacing the original K11's delta-sigma chip with an in-house R2R module (with switchable NOS/OS modes). Reviewers agree on the practical stuff: a solid milled-aluminium chassis, a useful screen, generous I/O (USB-C, optical, coax, RCA/pre-out, 4.4mm + 6.35mm) and standout value as the cheapest R2R option around. The genuine fight is over the sound — one camp hears a warm, organic, holographic character that neutral delta-sigma DACs don't offer, while the measurement-minded note it objectively measures poorly (SINAD ~72 dB / THD+N ~0.025%) and hear the same tilt as softened detail and rolled-off treble: a colored flavor, not higher fidelity. Two smaller caveats recur — with very sensitive IEMs the headphone output can surface an audible noise floor (worse in NOS), and most reviewers treat the built-in headphone amp as merely adequate, recommending the K11 R2R mainly as a DAC feeding a better amp. It has no Bluetooth, remote, or balanced line-out.

Where they agree

  • A genuinely different, warm/organic 'R2R' voicing versus the neutral base K11 — most obvious in NOS mode
  • The cheapest way into R2R by a wide margin (~$160), with build and I/O well above the price
  • Solid milled-aluminium 'mini Mac mini' chassis, a useful screen, and a NOS/OS sound toggle
  • Plenty of connectivity for the money: USB-C, optical, coax, 4.4mm + 6.35mm, and an RCA line/pre-out
  • Enough power on paper for most headphones — but it shines most as a DAC into a separate amp

Where they split

  • Is the R2R 'character' a real sonic upgrade or just measurable coloration and softened detail? (SINAD ~72 dB — the classic R2R-vs-delta-sigma fight)
  • Noise: fine with headphones and most IEMs, but very sensitive IEMs can surface an audible floor, worse in NOS
  • NOS vs OS: NOS is the most 'analog' but rolls off treble/detail; OS cleans up but sounds close to an ordinary delta-sigma DAC
  • Is the built-in headphone amp good enough on its own, or just a stopgap until you add a real amp?
The verdict, mappedEvery aspect on one axis — criticized to praised. Hover a point for its spread; click to jump.
CriticizedNeutralPraised

By aspect — in detail

Transparency

Contested · 8 src

The decisive split, and the classic R2R debate in miniature. One camp hears a genuinely warm, organic, more 'analog' character that neutral DACs lack; the measurement camp hears the same tilt as softened detail and rolled-off treble atop objectively poor numbers, and calls it a colored flavor rather than higher fidelity. A few reviewers land in the middle — enjoying the warmth while conceding the detail cost.

Measured

Independent bench measurement puts SINAD around 72 dB (THD+N ≈ 0.025%), matching FiiO's own spec and far below the ~110–120 dB of competent delta-sigma DACs at the price — by modern numbers the R2R converter is low-fidelity. TechPowerUp's bench review lands in the same place, calling it 'a basic implementation which doesn't give you that organic taste higher end R2R DACs do.'

⚠ vs. listeners — The graph says colored and low-fidelity; subjectivists frame the same coloration as pleasant warmth and 'naturalness.' As Headfonia puts it, R2R designs 'typically measure worse in these areas, but such measurements are not always an accurate reflection of real-world performance' — measurement constrains what's physically there, preference governs how it lands.

Where it splits
A genuinely different, organic/analog character worth having47%

“K11 R2R, compared to its delta-sigma predecessor, offers a sound that's less about accuracy and technical capability and more about musicality and emotion.”

Headfonia
A colored, low-fidelity flavor — measures poorly and softens detail53%

“Dynamic range is fundamentally decent, but -72 dB THD+N at 0 dBFS would make converters from the digital dark ages around 1980 blush.”

AnalogSteph · Audio Science Review

Noise

Contested · 4 src

Condition-specific, and it splits. With full-size headphones and most IEMs the background is fine; with very sensitive IEMs the headphone output can surface an audible noise floor, worse in NOS mode (the R2R stage is inherently noisier than the delta-sigma K11). So this reads as a real caveat for IEM listeners rather than a flat fault.

Measured

R2R designs measure noisier than delta-sigma, and the ~72 dB SINAD reflects elevated harmonics/noise. Reviewers report the floor is inaudible on headphones and most IEMs but audible on ultra-sensitive IEMs; NOS mode adds to it, and OS mode cleans it up.

Where it splits
Quiet enough with headphones and most IEMs43%

“the K11 R2R has a headphone output that is reasonably powerful and quiet enough for almost any IEM”

audioreviews.org
Audible noise floor with very sensitive IEMs (worse in NOS)57%

“there is a definite noise floor present with such sets that will get distracting”

TechPowerUp

Power

Moderate · 5 src

Enough drive on paper for the vast majority of headphones — a balanced output rated ~1.3 W into 32 Ω, three gain modes, and it handles hard-to-drive sets like the HD 800 S in a pinch. The recurring caveat isn't quantity but the amp stage itself: several reviewers call the built-in headphone amp merely adequate and recommend using the K11 R2R as a DAC into a better amp, and it's slightly less powerful than the original K11.

“Even the HD800s, known for being difficult to drive, posed no problem for the K11 R2R.”

audio46

“So, as a start the built-in headphone output is fine but I'd look to get a decent amp as fast as the budget permits.”

audioreviews.org
Measured

Rated/measured output ≈ 1.3 W into 32 Ω balanced and ≈ 460 mW single-ended (≈ 660 mW into 16 Ω), with low output impedance (<1.5 Ω) — plenty for most headphones, though less than the delta-sigma K11 and best reserved for the DAC feeding a separate amp with demanding cans.

Features

Moderate · 4 src

Generous connectivity and control for the price — USB-C, optical and coax in, RCA line/pre-out, 4.4mm balanced + 6.35mm headphone out, three gain modes, NOS/OS toggle, PS5/console support and a useful screen. The gripes are what's missing: no Bluetooth, no remote, and only a single-ended (not balanced) line-out.

“The K11 R2R has a variety of inputs and outputs that make it compatible with different sources and devices.”

Headfonics

“No remote or Bluetooth”

audioreviews.org

Ergonomics

Moderate · 3 src

Driven by a single multifunction encoder knob and a clear monochrome screen; short/long presses cycle inputs, outputs and the menu, and it remembers separate volumes for headphone and line out. Most find it intuitive once learned; the minor knocks are a small LCD and that all control funnels through one knob, so it takes a moment to memorise the presses.

“The K11 R2R has an intuitive control scheme that is simple enough for daily usage.”

Headfonics

“While functional, I found it a bit small and sometimes difficult to read.”

audio46

Build

Strong consensus · 4 src

Consistently praised: a compact, milled-aluminium chassis with an 'Apple Mac mini' look that feels a clear step above the price.

“the milled aluminum case gives an Apple Mac mini vibe, every connection seems solid”

audioreviews.org

“The aluminum shell gives it a premium feel that belies its budget-friendly price point.”

audio46

Value

Strong consensus · 5 src

The other pillar of its reputation: near-unanimously called the cheapest way into real R2R by a wide margin, with build and I/O well above the price. The one asterisk is that the delta-sigma K11 costs less and measures far better — so the R2R's value is specifically as an affordable R2R flavor, not as the best pure price-performance pick.

“the FiiO K11 R2R is one of the best value options out there for those interested in experiencing the more natural analog sound of an R2R DAC.”

Headfonics

“There aren't many options in this price bracket, and if you wish to try this DAC architecture without breaking the bank, this is your chance.”

Headfonia

Best for

  • Curious listeners who want to try R2R/'analog' sound without spending big
  • People pairing bright, neutral or analytical headphones that welcome a touch of warmth
  • Desk setups that mainly need a characterful DAC feeding a separate amp or powered speakers
  • Buyers who value build, plentiful I/O and a physical volume knob at a low price

Skip if

  • You want measured transparency / 'straight-wire' fidelity — the base K11 or a Topping/SMSL measures far better for less
  • You listen mostly with very sensitive IEMs and need a dead-black background
  • You need a remote, Bluetooth, a balanced line-out, or built-in EQ/PEQ
  • You want a powerful, refined all-in-one headphone amp rather than a DAC-first box

At a glance

↳Consensus
73 / 100weighted mean across 9 sources — an aggregate, not a single verdict
↳Type
DAC/Amp
↳Sources
9 · 4 classes
↳As of
2026-07-14
Sources9 reviews across 4 classes. Weight reflects expertise × independence; echoes collapsed.
  1. s1Fiio K11 R2R DAC/HPAMP measurementsAudio Science ReviewMeasurement2025-01-22w0.90
  2. s2FiiO K11 R2R Desktop DAC/Headphone Amplifier ReviewTechPowerUpMeasurementw0.95
  3. s3FiiO K11 R2R ReviewHeadfonicsEditorial2024-07-27w0.90
  4. s4FiiO K11 R2R ReviewHeadfoniaEditorialw0.85
  5. s5FiiO K11 R2R DAC Review — Resistance Is Futileaudioreviews.orgEditorial2024-12-10w0.80
  6. s6Fiio K11 R2R: A Budget-Friendly R2R DAC/Amp Reviewaudio46Editorialaffiliate2024-09-17w0.65
  7. s7Review: FiiO K11 R2R DAC/Headphone AmpWall of SoundCritical2025-02-04w0.85
  8. s8Owner impressions — running the K11 R2R as a pure DACvinodk69 · Audio Science ReviewCommunityw0.60
  9. s9K11 R2R vs Fosi SK02 — owner A/B (returned it)u/BGMeek · Audio Science ReviewCritical2025-02-27w0.55

Limitations & method

Consensus-of-sources synthesis · as of 2026-07-14 · not a measurement verdict or ground truth.
