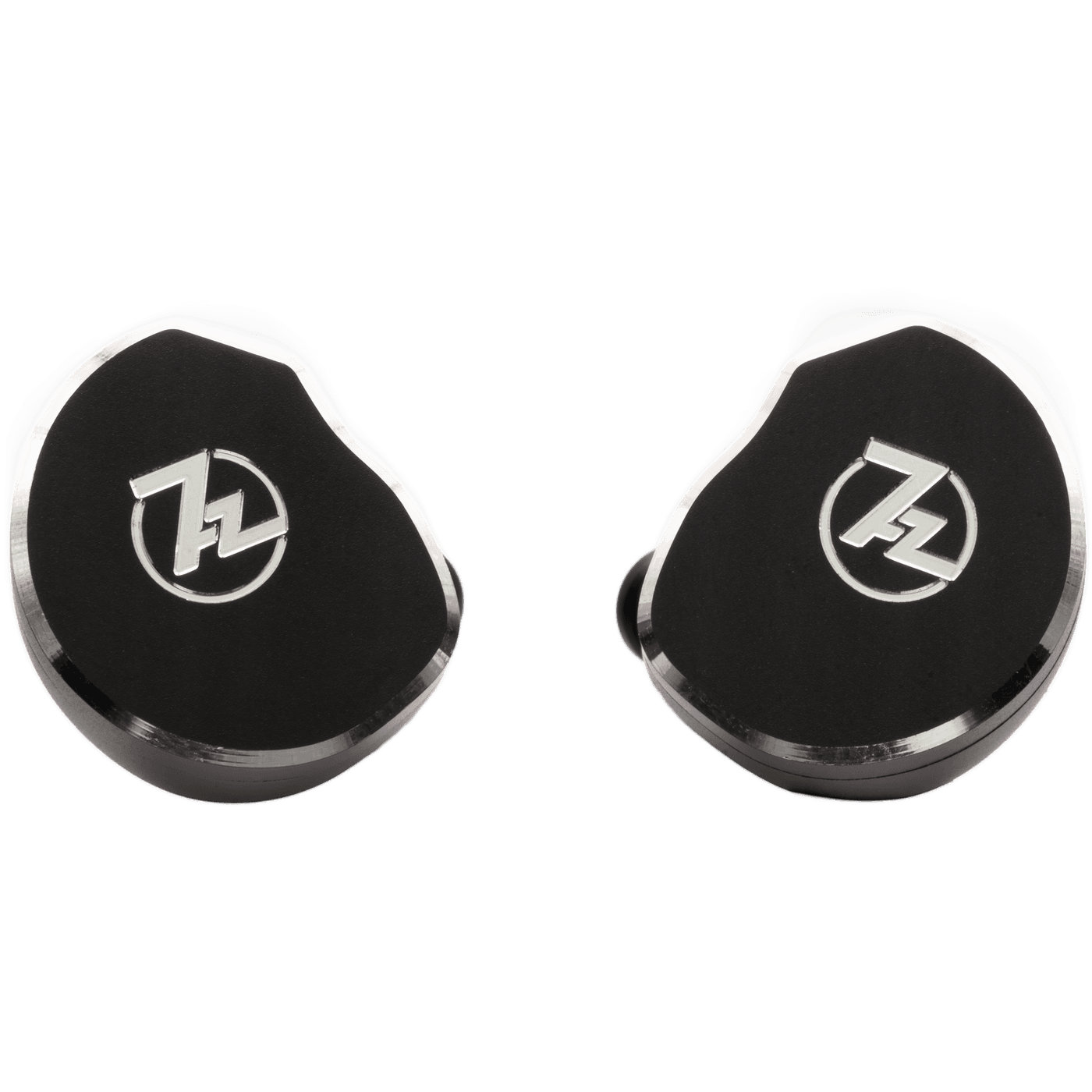

7Hz x Crinacle Diablo

7Hz x Crinacle Diablo

Nineteen graphs agree on the shelf to within a decibel. Fourteen ranking critics still score it anywhere from 2 to 8.5.

Buy now on Amazon

As an Amazon Associate, we earn from qualifying purchases.

The bass-tuned twin of the 7Hz x Crinacle Divine — same third-generation 14.5 mm planar driver, shell, cable and case, matte black instead of mirror silver, with a shelf the maker calls a 12 dB bass boost. Not the 2022 Salnotes Dioko it nominally succeeds, and not the 7Hz Timeless line. Launched at $149 in November 2025; $159 at Linsoul as of September 2026.

OverreviewIn-Ear Monitor44 sourcesas of 2026-09-17

7Hz started the budget-planar arms race with the 2021 Timeless, and Crinacle turned frequency-response graphs into the hobby's common language before turning collaborator. Their first joint planar, the 2022 Salnotes Dioko, was bright, oddly shaped and divisive. The 2025 follow-up came as identical twins: one new 14.5 mm driver, one small CNC-aluminium shell, two tunings. The silver Divine is the balanced one. The black Diablo is the one with the bass, sold at $149 to hip-hop, EDM and rock listeners, and it outsold its sibling two to one at launch.

It has since collected one of the widest verdict spreads of any $150 earphone: Head-Fi owners average 4.3 stars, Linsoul buyers 4.8, and the two most measurement-minded video reviewers both gave it two out of five. Every one of them is describing the same curve — a ~10 dB shelf that is at the Harman target in the sub-bass and three to four decibels above it through the upper bass, under a slightly relaxed ear gain and a smooth, rolled top. Whether that lands as slam or as soup is the whole argument, and the graphs show it is not a fit artefact.

The overview

A warm, bass-first single planar whose low end nineteen rigs place within a decibel of each other, and whose sound almost nobody hears the same way. Reviewers agree that it slams, that the driver keeps the bass fast, that the treble is smooth and fatigue-free, that the small shell fits and isolates well, and that the stiff, 3.5 mm-only stock cable is the package's weak point. They split on everything downstream of the shelf: whether the bass is controlled or bloated, whether the midrange is lush or veiled, whether the stage is large or crowded, whether the detail is real or masked, and whether it is worth $150 against a crowded planar field or only worth it on sale. The split tracks reviewer disposition — graph-first critics against bass-first listeners — more than it tracks units, tips or sources; the rig data shows only a poor seal changes the shelf itself.

Where they agree

  • The bass is deep, physical and fast — the set's reason to exist, and even the critics concede the slam
  • Smooth, peak-free, non-fatiguing treble with no old-planar zing or sibilance
  • A small, light, comfortable metal shell that isolates well once sealed
  • The stiff, heavy, 3.5 mm-only stock cable is the package's weak point — most reviewers replace it
  • Easy to drive off a dongle, though it tightens up with a stronger, cleaner source
  • It is the same driver as the Divine: the twins differ by about 3 dB of upper bass and 1.5 dB of everything above 1 kHz

Where they split

  • Bass control: textured and clean under planar speed, or soupy mid-bass bloom that dominates the mix
  • Midrange: warm, full and natural, or recessed, husky and veiled behind the shelf
  • Overall tonality: a fun, coherent specialist, or simply too warm and bassy to be called balanced
  • Soundstage: wide and layered, or intimate and compressed once the bass fills the head
  • Detail: real planar micro-detail that survives the boost, or below-average resolution masked by it
  • Value: the bass planar worth $150, or a set outdone by the Divine and cheaper rivals unless on sale
  • The cable: a premium, durable hose that holds up, or a stiff 3.5 mm-only liability to be replaced on day one
The verdict, mappedEvery aspect on one axis — criticized to praised. Hover a point for its spread; click to jump.
CriticizedNeutralPraised

Where to buy

As an Amazon Associate, we earn from qualifying purchases.

Best for

  • Bass-first listeners — hip-hop, EDM, metal, big live recordings — who want planar speed under the weight
  • Treble-sensitive listeners who find most planars sharp
  • Small ears and long sessions: the 8 g shell is one of the easiest planar fits going
  • Anyone who already owns a modular cable and a source with some current to spare

Skip if

  • Your library is vocal, acoustic, jazz or classical — the midrange sits a step back by design, and the Divine exists for you
  • You want a neutral or reference-leaning planar, or you are sensitive to upper-bass thickness
  • You want maximum resolution at $150 — the graph-first critics rank several rivals higher
  • You refuse to replace a cable or run balanced: the stock cable is stiff and fixed at 3.5 mm

At a glance

Consensus
70 / 100weighted mean across 44 sources — an aggregate, not a single verdict
Type
IEM
Sources
44 · 6 classes
As of
2026-09-17
Owner rating
4.8/5 · 17small, self-selected sample — skews high

By aspect — in detail

Bass

Contested · 38 src

Sources split on the same shelf. The large majority — most written and video reviewers and nearly every owner — hear deep, textured, physical bass that the planar driver keeps fast enough to stay clean, and several stress that it is thick, mid-bass-led weight rather than sub-bass-only rumble. A smaller, heavier-weighted camp led by the two 2/5 critics hears the same shelf as soupy bloom that dominates the mix. A few owners say the opposite again: that it is not bassy enough to earn the name.

Measured

Nineteen IEC-711-class rigs agree to within about half a decibel below 300 Hz: relative to 500 Hz the shelf sits at +9.3 dB (20 Hz), +9.9 dB (40 Hz), +9.4 dB (60 Hz), +7.8 dB (100 Hz), and is still +4.3 dB at 200 Hz and +2.2 dB at 300 Hz. Against Harman IE 2019 that is at target at 20 Hz but +3.6 dB at 100 Hz and +4 dB at 150–200 Hz — a shelf that starts late, so the excess is upper-bass warmth, not sub-bass. On the same rigs the Divine is only 3 dB lower at 100 Hz and 1 dB lower at 20 Hz; the 12 dB the maker quotes is the whole shelf relative to 1 kHz, not the gap between the twins.

⚠ vs. listeners — The graphs settle what is there, not how it lands: the +4 dB at 150–250 Hz is the weight the majority praises and the bloom the critics object to. Tips and insertion depth move this region by under a decibel on the sai, atechreviews and Super* Review rigs, so the split is not a seating artefact; a poor seal or an occluded vent is — a leak collapses the whole shelf, which is where the minority 'not that bassy' reports most plausibly come from.

Where it splits
deep, textured and physical — planar speed keeps it clean85%

Sub bass extension is genuinely deep, rumble is textured rather than just loud, and the driver never ran out of headroom on me.

Mahir Efe Falay, Mobileaudiophile
far too much — soupy bloom that swallows the mix15%

I think this is just way way too much bass.

Super* Review (video transcript)

Mids

Contested · 28 src

Sources split almost evenly. One camp hears a warm, full, natural midrange — vocals with body and crisp transients that never turn shouty, several calling it the quiet strength of the set. The other hears the same region recessed by design behind the shelf, with vocals that turn husky, veiled or 'cooked', female voices paying more than male. Both camps agree there is no planar metallic edge and no sibilance.

Measured

Ear-gain peak of +7.5 dB over 500 Hz at 3 kHz across the rigs, about 3 dB below Harman IE 2019 from 2 to 4 kHz, with 100–300 Hz running 2.6–4 dB above target. The Divine measures 1.1–1.6 dB higher through the whole 1–4 kHz band on the same rigs, which is the entire 'clearer mids' difference between the twins.

Where it splits
warm, full and natural — vocals keep their body48%

Transients are crisp, however, and vocals come through cleanly without sounding veiled.

David Becker, Prime Audio
recessed behind the shelf — husky, veiled, set back52%

So it is a midrange that gives you information without giving you intimacy.

Mahir Efe Falay, Mobileaudiophile

Treble

Moderate · 31 src

Mostly agreed: smooth, safe and non-fatiguing, with enough extension that the set does not read as closed-in, and none of the older 7Hz planar zing or sibilance. A minority hears the same top as dark, short of sparkle and air, and names it the reason detail goes missing.

Treble here is smooth, and I mean that as description and not as a compliment or an insult.

Mahir Efe Falay, Mobileaudiophile

Due to its relaxed highs, the Diablo is good for treble-sensitive listeners but it creates a darker presentation.

David Becker, Prime Audio

Some may even find the treble dark.

PrinceLestat, Head-Fi
Measured

A dip to +0.4 dB (relative to 500 Hz) at 6 kHz, a modest +3.5 dB rise at 8 kHz, then −3.1 dB at 10 kHz, −5.2 dB at 12 kHz and −7.4 dB at 15 kHz on the rig average — 5–8 dB below Harman from 5 to 7 kHz. Insertion depth swings everything above 5 kHz by ±3–5 dB, and the rigs disagree with each other by 1.5–2 dB there, so the top end is the one region the graphs describe as a range.

Tonality

Contested · 32 src

Sources split three to one. Most call it a warm, thick, fun V-shape done with unusual coherence — a genre specialist for hip-hop, EDM, metal and live recordings rather than an all-rounder, and several say it never sounds unbalanced despite the numbers. The critics call it simply too warm and too bassy to be balanced at all and point buyers at the Divine.

Measured

Neutral-with-bass-boost on the rigs: bass +9–10 dB, mids at reference, ear gain +7.5 dB, treble rolling off above 8 kHz. Against the JM-1 10 dB-tilt target it is +6–7 dB from 40 to 100 Hz and within a decibel from 700 Hz to 4 kHz — the shape most reviewers would call a bass-shelved 'new meta' tuning, whichever side of the argument they are on.

Where it splits
a warm, fun specialist with better manners than expected76%

It is a genre specialist with better technical manners than genre specialists usually have

Mahir Efe Falay, Mobileaudiophile
too warm and too bassy to count as balanced — get the Divine24%

This is not for anyone who wants a balanced or neutral sound.

Gizaudio (video transcript)

Soundstage

Contested · 17 src

Sources split. The larger camp finds the stage wide, layered and unusually immersive for a planar at the price — several Head-Fi listeners call it the biggest they have heard under $200. The smaller camp hears the bass fill the head and pull the presentation inward, describing it as intimate, contained or compressed on busy tracks.

Where it splits
wide and layered — holds together on chaotic live recordings70%

Wide, layered presentation that handles chaotic live recordings without falling apart

Mahir Efe Falay, Mobileaudiophile
intimate — the bass fills the head and closes it in30%

With such a big bass, the stage feels fairly intimate, the upper midrange and treble details feels harder to come through, so it’s not as resolving as it could’ve been.

vandung2510, Head-Fi

Imaging

Moderate · 17 src

Mostly praised: placement is tidy and separation holds up better than a shelf this size suggests, and the gaming reviewers rate it usable if not competitive-grade. The dissenters hear the bass mask separation and blur layering once a mix gets dense.

Despite that, the imaging is quite pinpoint, making it easy to determine the position of elements within the stage.

David Becker, Prime Audio

The imaging and layering were also a bit skewed due to the bass instruments being really up front.

vandung2510, Head-Fi

Detail

Contested · 25 src

Sources split down the middle, and this is where the two-star reviews come from. One camp hears real planar micro-detail — percussion articulation, layered crowds, guitar grain — surviving under the shelf. The other, including the only written review to score it below four, finds resolution below average for $150 with micro-details simply absent, and calls any extra low-frequency texture an illusion of the boost rather than resolution.

Where it splits
genuine planar detail that survives the bass53%

Detail is strong, imaging holds up well once you adjust to the bass.

Tom Wolverson, Aussie Audiophile
below average for the price — micro-detail goes missing47%

Where Diablo falls short is in its detail retrieval, which is below average at best; some micro-details are simply absent, even though you can clearly hear them on other IEMs.

David Becker, Prime Audio

Dynamics

Moderate · 20 src

Near-unanimous: this is the set's core strength. Reviewers on both sides of the bass argument describe slam, physical impact and a fast attack that a dynamic driver at the price does not match, and note it scales louder without strain. The lone dissent finds the planar bass not fast or dynamic enough to justify the quantity.

There’s real slam here, the kind of low-end you feel.

Tom Wolverson, Aussie Audiophile

a pressure event rather than a note

Mahir Efe Falay, Mobileaudiophile

Comfort

Moderate · 25 src

Mostly praised: an 8 g shell smaller than the Timeless or Dioko, comfortable for long sessions, with several small-eared listeners singling it out. The minority complaints are about stability rather than pressure — a rounded shell that sits on the tip seal alone and can 'joystick', a heavy stock cable that drags it, and one listener who needed foam to seal.

Comfort is genuinely good because of the size.

Mahir Efe Falay, Mobileaudiophile

As for comfort It did not fit well in my ear due to the weight and shape.

PrinceLestat, Head-Fi
Measured

Seal matters more than seat: sai's leakage trace drops 20–100 Hz by 24–35 dB while insertion depth moves the bass by under a decibel, so a set that is comfortable but loosely seated will sound like a different, much leaner earphone.

Build

Contested · 27 src

Sources split, and almost entirely over the cable. The shell (CNC aluminium, matte, fingerprint-proof) and the oversized zip case draw praise from nearly everyone. The stiff, heavy, memory-prone single-crystal-copper cable with a fixed 3.5 mm plug is the most repeated complaint on the record, and a few owners report the 2-pin socket gripping it so hard that removal damaged a connector. A minority like the cable as it is.

Where it splits
stiff, heavy, 3.5 mm-only — budget for a replacement71%

The stock one is stiff, it holds packaging memory for a while, and the preformed hooks sit looser than I like.

Mahir Efe Falay, Mobileaudiophile
solid shells, premium case, the cable is fine29%

Nothing to complain about at all, and the cable has held up well.

Tom Wolverson, Aussie Audiophile

Isolation

Strong consensus · 6 src

Agreed and unremarkable: the small vented metal shell isolates respectably once sealed — enough for planes and streets, not vacuum-tight.

I found them very comfortable, and they provide a respectable level of passive noise isolation.

David Becker, Prime Audio

The sound isolation in the Devils is simply good, but not like a vacuum.

IceIceberg, Head-Fi

Value

Contested · 29 src

Sources split. The majority call it the bass-planar many were waiting for and an easy recommendation at $150, several owners preferring it to sets costing far more. The minority — the two 2/5 critics, Prime Audio, Jays Audio and a few owners — say it does not stand out in a savage $100–200 planar field, that the Divine or a cheaper set is the safer buy, and that it only makes sense on sale.

Where it splits
the bass planar people wanted — an easy pick at the price69%

For me the Diablo earned a spot in rotation, not as a reference, as the set I reach for when I want music to hit me rather than inform me.

Mahir Efe Falay, Mobileaudiophile
outdone at the price — the Divine or a sale is the smarter buy31%

the Diablo I do not like. I'm going to give the Diablo two stars out of five.

Super* Review (video transcript)
Sources44 reviews across 6 classes. Weight reflects expertise × independence; echoes collapsed.
  1. s17Hz x Crinacle Diablo Review: Planar Bass That Actually BehavesMobileaudiophile (Mahir Efe Falay)Editorial2026-08-03w1.00
  2. s27Hz x Crinacle Diablo Review — 3.5/5; 'lacks detail and gets outdone by similarly priced competitors'Prime Audio (David Becker)Editorial2025-11-21w0.85
  3. s37hz x Crinacle Divine vs Diablo: Two Planars, Two Personalities — Diablo 4.5/5Aussie Audiophile (Tom Wolverson)Editorial2025-11-23w0.85
  4. s47Hz x Crinacle Diablo — 5.6/10, measured on the author's own IEC 60318-4 clone couplerjson's blogEditorial2026-06-08w0.80
  5. s57hz x Crinacle Diablo — 14 expert reviews, normalised 6.5/10 'Mixed to Positive', scores 4 to 8.5IEMRankingEditorial2026-08w0.40
  6. s6The truth about the Crinacle Divine & Diablo — Diablo 2/5Super* Review (YouTube)Critical2025-12-13w0.95
  7. s77Hz x Crinacle Divine & Diablo: So Different! — Diablo 2/5Gizaudio (YouTube)Critical2025-11-22w0.90
  8. s87Hz x Crinacle Divine and Diablo Double Review — The Planar Project Ep.14Audio Amigo (YouTube)Video2025-12-08w0.90
  9. s9Why..The Best planar Earphones I own cost $149Bad Guy Good Audio Reviews (YouTube)Video2025-11-11w0.85
  10. s107Hz x Crinacle Diablo — 'Easy to recommend bassy set', 6.8/10Jaytiss (YouTube)Video2025-12-05w0.85
  11. s117Hz x Crinacle: Diablo — The One I Was Waiting ForPaul Wasabii (YouTube)Video2025-11-15w0.85
  12. s127Hz Diablo — a BassFi IEM; 6.3/10, two units measuredTone Deaf Monk (YouTube)Video2026-03-19w0.80
  13. s13I speedrun/rank 20 new IEMs (+7Hz Diablo & Divine review) — Diablo 6/10, 'recommended on sale'Jays Audio (YouTube)Video2025-11-14w0.80
  14. s14Z-Reviews — 6/10 rescaled; 'the Divine is the safer music-first choice'Z-Reviews, via IEMRankingVideounknown2025-12-08w0.70
  15. s15Joyce's Review — 8.5/10, A+ tuning and techJoyce's Review, via IEMRankingVideounknown2025-12w0.70
  16. s16The BASSIEST IEM I Have Tried! 7Hz x Crinacle Diablo ReviewLesModio (YouTube)Videoaffiliate2026-01-24w0.55
  17. s17Should You Buy the 7Hz x Crinacle: Diablo or Divine? — 'The answer is no, you should not.'Sharur (YouTube)Critical2025-11-11w0.60
  18. s18Fresh Reviews — gaming B grade; imaging good, bass masks cues in chaotic fightsFresh Reviews, via IEMRankingVideounknown2025-11-09w0.50
  19. s197hz x Crinacle Diablo & Divine Review — Go with the Dark SideMakeItWain (YouTube)Video2026-04-03w0.50
  20. s20Planar IEMs were the same for YEARS... Until now. — the designer's launch video (context only)crinacle (YouTube)Videosponsored2025-11-11w0.30
  21. s21Head-Fi showcase review — 5/5; 'This is not muddy or even that crazy of a bass IEM'Head-Fi (Redcarmoose)Community2025-11-11w0.70
  22. s227Hz X Crinacle Diablo & Divine — Planar Magnetic Precision; 4.5/5Head-Fi (Ckro)Community2025-11-11w0.70
  23. s23Clean & Mean, Crinacle's Planar + Punch — 4.5/5Head-Fi (Drock6)Community2025-11-19w0.70
  24. s24Divine vs Diablo: Two Planars, Two Personalities — 4.5/5 (the Aussie Audiophile post, reposted)Head-Fi (tombrisbane)Community2025-11-23w0.10
  25. s25Head-Fi showcase review — 4.5/5; 'Finding the right fit requires experimentation'Head-Fi (antonyfirst)Community2025-11-25w0.65
  26. s267Hz x Crinacle Diablo: DEVILISH BASSHEAD PLANAR — 5/5Head-Fi (IceIceberg)Community2025-11-26w0.65
  27. s277hz X Crinacle Diablo Review — 4/5; 'riding on the line of being *too* thick sounding'Head-Fi (vandung2510)Community2025-12-11w0.70
  28. s287Hz x Crinacle Diablo Review : A Planar with Bite — 4/5; the outlier 'lean, cooler' readHead-Fi (Sonic Sleuth)Community2025-12-16w0.70
  29. s297Hz x Crinacle Diablo : Team Heaven or Team Hell? — 3/5, bought with own moneyHead-Fi (PrinceLestat)Critical2026-02-08w0.75
  30. s30Warmish, Bassy Planar IEM: 7hz Diablo — 4/5 (3.8 stars); 'the Timeless 2 is a better buy'Head-Fi (cpu235)Community2026-03-02w0.70
  31. s317Hz x Crinacle: Diablo/Divine Discussion — owner 'that's it?', ground-loop hum, 'way too much bass'Audio Science Review forumCritical2025-11-26w0.60
  32. s327Hz Diablo — All Reddit Reviews, in One Place: #58, 84 % positive of 45RedditRecsCommunity2026-09-17w0.75
  33. s33Linsoul product page + 17 buyer reviews (4.82/5: 14×5★, 3×4★) and official specsLinsoulOwnersponsored2026-09-17w0.50
  34. s34Amazon listing shared with the Divine — 3.9/5 across 61; 'Customers say' Sound quality 16 positive / 8 negativeAmazonOwnersponsored2026-09-17w0.50
  35. s35Hangout.Audio (Crinacle's own store) — 16 buyer reviews, 4.94/5Hangout.AudioOwnersponsored2026-09-17w0.35
  36. s367Hz Diablo stock, shallow and deep insertion vs the Divine and Harman IE 2019 (IEC-711 clone)Super* Review squig.linkMeasurementw1.00
  37. s377Hz x Crinacle Diablo — stock, Shallow Fit and Deep Fit, plus the Divine (IEC-711 clone)ATechReviews squig.linkMeasurementw0.90
  38. s387Hz x Crinacle Diablo — six ear tips, vents blocked, KB5000 pinna and a seal leak on one unitsai squig.linkMeasurementw0.90
  39. s397Hz Diablo, two units on one rig — unit variation ≤0.6 dB below 5 kHzTone Deaf Monk squig.linkMeasurementw0.85
  40. s407Hz Diablo vs Divine (IEC-711 clone)Audio Amigo squig.linkMeasurementw0.85
  41. s417Hz Diablo vs Divine (IEC-711 clone)Jaytiss squig.linkMeasurementw0.80
  42. s427Hz Diablo vs Divine (IEC-711 clone)Bad Guy Good Audio squig.linkMeasurementw0.80
  43. s437Hz x Crinacle Diablo vs Divine (IEC-711 clone) — one of nineteen rigs in the averageJoyce's Review squig.linkMeasurementw0.75
  44. s44Diablo S1 and Divine S1 on the designer's own B&K 5128 — first-party, referenced for shape onlyHangout.Audio graph databaseMeasurementsponsoredw0.40

Limitations & method

Consensus-of-sources synthesis · as of 2026-09-17 · not a measurement verdict or ground truth.
