Band: opinion spread · Dot: weighted average

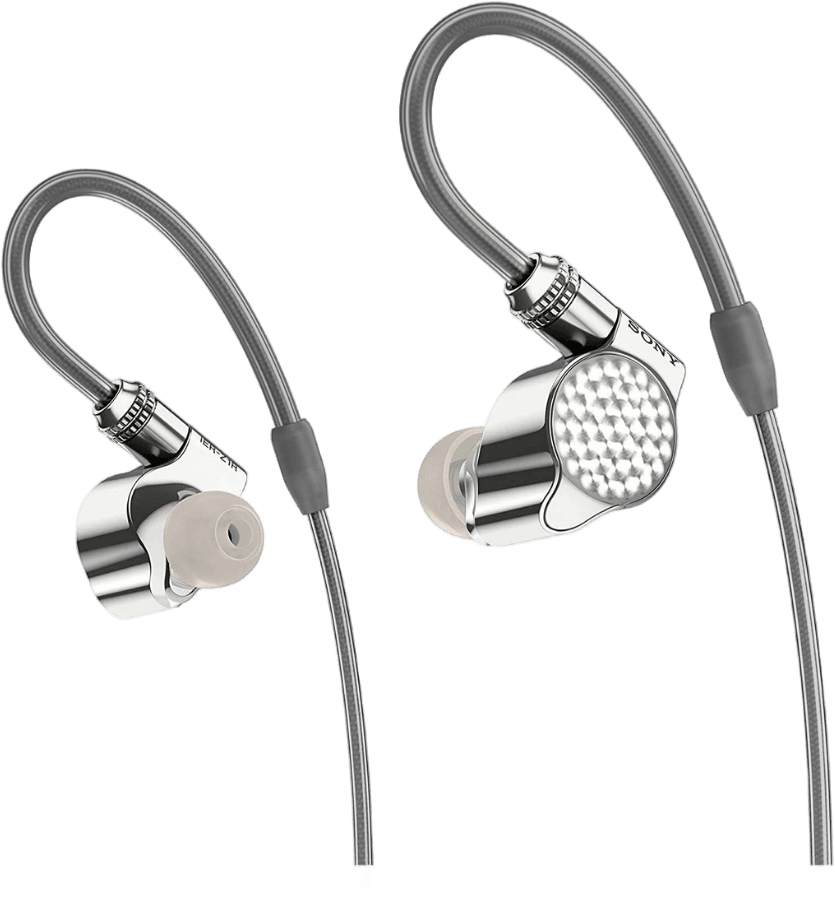

The reason the IER-Z1R is famous, and the closest thing it has to a consensus: a deep, textured low end with real slam and long, natural decay that reviewer after reviewer — editorial, ranking-list and owner alike — names the best bass they have heard in an IEM. The dissent is a minority but a consistent one: a measurement voice that hears it as thick and dynamically limp, a few owners who hear it bleed or boom, and listeners coming from newer bass-focused sets who say the field has caught up. The measurements explain the bleed reports better than the reviews do.
“The IER-Z1R is my zenith of bass in portable fidelity.”
Precogvision, Headphones.com
“Rumble comes through well-articulated while percussive beats are clean and well-defined with almost zero smearing despite its emphasis.”
Crinacle, In-Ear Fidelity
“I have no problems to even go further and say this is the best overall bass presentation I’ve ever heard”
nymz, nymz reviews
“The high end is lively sounding, however, the low end can't seem to get it up in terms of dynamics.”
purr1n, Super Best Audio Friends
“was dismayed at how absolutely boomy (and not in a good way) the bass sounded”
xdamm777, r/headphones
Measured
Across 24 squig.link rigs (500 Hz-normalised) the shelf is +8.6 dB at 40 Hz — right on the Harman IE 2019 target — but stays high longer than the target: +6.7 dB at 100 Hz and +3.1 dB at 200 Hz, 2.5–2.7 dB above Harman on every rig, before a lower-midrange trough. Tips and insertion depth move the bass by under 1.5 dB on the coupler, and units agree within about 1–2 dB. The low end comes from a 12 mm magnesium-dome dynamic driver.
vs. listeners — Reviewers describe a sub-bass-led low end ('a strong focus in the sub-bass rather than midbass', Crinacle), but the rigs show a shelf that is on target in the deep bass and above target through 100–200 Hz — the 'sub-bass focus' is partly the contrast with the scooped lower mids above it. That upper-bass carry is the likely physical basis of the minority who hear bleed or boom. purr1n's distortion explanation for the thick low end does not stand: Crinacle measured the same model in that thread at roughly 0.1–0.2% THD, and purr1n traced his own figures to a faulty USB cable and redid them.
