MIDI ControllerOverreview

Novation Launch Control XL 3

A decade-old fader box, finally modernised with 5-pin MIDI, endless encoders and a screen — praised almost everywhere, until those endless encoders meet a fast live mix.

11 sourcesUpdated
$250Typical US price

Score aggregates reviewer opinions across topics.

Check price on Amazon
As an Amazon Associate, we earn from qualifying purchases.
Novation Launch Control XL 3

The short version

What to know.

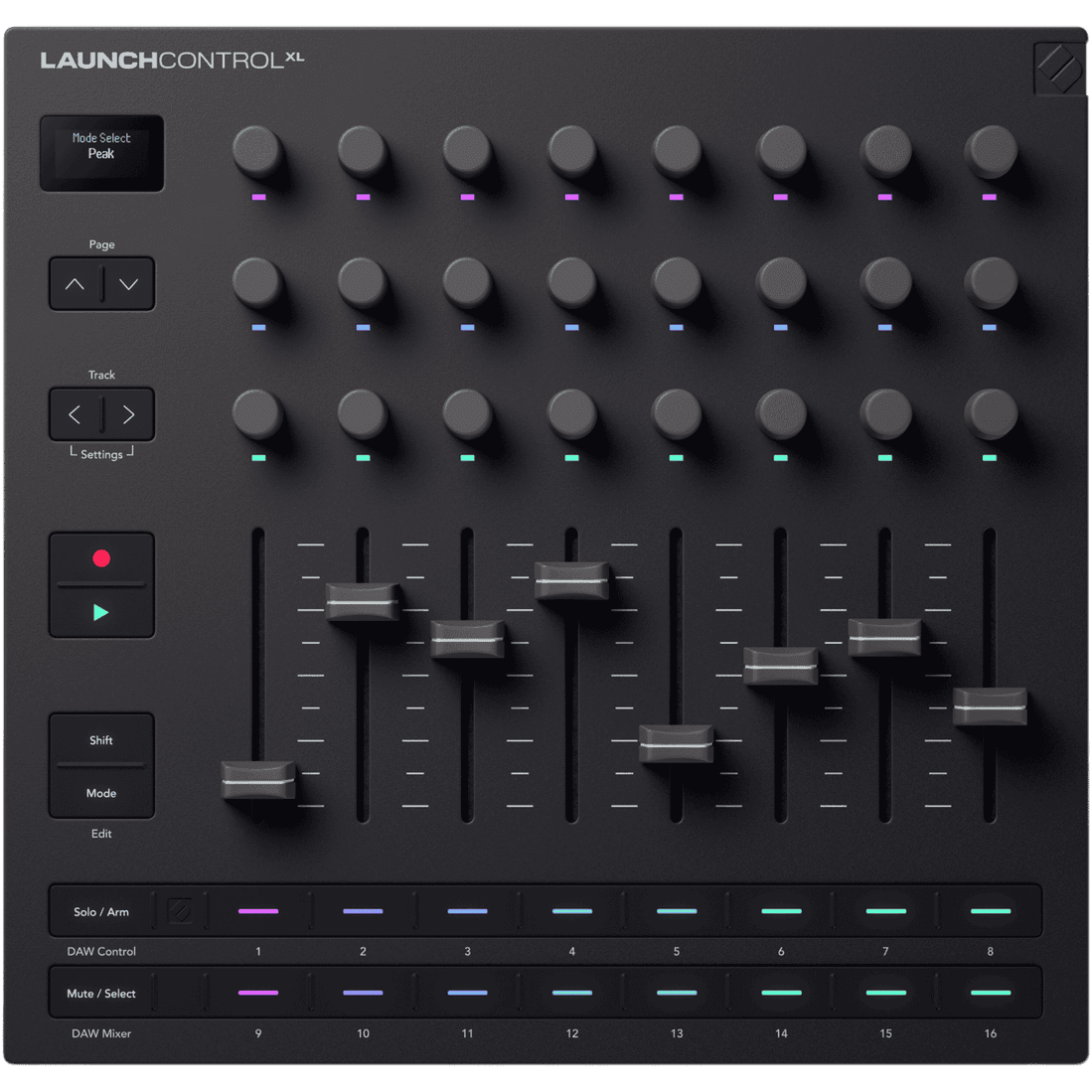

A compact, mixer-style MIDI control surface — 24 endless encoders, eight 60mm faders, 16 assignable buttons and a small OLED screen — that around $250 aims to control a DAW, outboard hardware, or both at once. Reviewers broadly agree on its strengths: the third generation's full-size 5-pin MIDI (In/Out/Out2/Thru) plus USB-C bus power and internal MIDI merge finally make it work standalone and as a hybrid hub; the redesigned chassis feels notably more solid and premium than the plasticky Mk2; it stays small and light enough to live on a writing desk or slip into a backpack; Ableton Live recognises it instantly (with downloadable scripts and, since firmware 1.1, Mackie HUI for Logic, Pro Tools, Reaper, Studio One and more); and the software bundle (Ableton Live Lite, Cubase LE, plus Klevgrand, Baby Audio and Output plugins) is generous for the price. Opinion splits mainly on the endless encoders: most call them firm, satisfying and consistent, but a substantive minority of live and fast-mixing users find their DAW-mode sensitivity sluggish — it can take multiple turns to sweep a parameter — and several wish for a value-indicator LED ring rather than the tiny screen. The other caveats are consistent rather than contested: the Components editor is powerful but clunky and desktop-only (no iOS); a single mode can't hold multiple pages; there's no CV/gate, sequencer or sustain-pedal jack; and the rubberised knobs may get sticky with age. It's no longer a budget controller, but it's widely judged good value for the control density and connectivity.

About this product

The third-generation Launch Control XL (the 'XL 3' / 'Mk3') — a fader-and-encoder DAW control surface with 24 endless encoders, eight 60mm faders and 16 buttons, but NO keys and NO pads. Not the smaller Launch Control 3 (encoders only, no faders), and distinct from the older USB-only Launch Control XL / XL Mk2, which lacked the screen and 5-pin MIDI.

Novation's Launch Control XL has occupied the same quiet corner of the studio since 2014: a mixer-style bank of faders, knobs and buttons that gave Ableton Live users hands-on control, reliably and cheaply. The Mk2 (2017) added little beyond RGB buttons; both were USB-only, screenless, and useless without a computer.

The XL 3 is a far bigger swing. Novation swapped the pots for 24 endless encoders, added an OLED screen, and — the headline change — full-size 5-pin MIDI DIN, so for the first time the board can control hardware synths and drum machines with no computer in the loop. Eight 60mm faders, 16 assignable buttons, USB-C bus power and up to 15 recallable Custom Modes round it out. Reviewers broadly treat it as the compact hybrid control surface the line always wanted to be; the arguments gather around its endless encoders, its Components mapping software, and what it still leaves out.

A good fit for

  • Ableton (and other DAW) users who want a compact bank of faders, endless encoders and transport control that just works out of the box
  • Hybrid producers who want one small surface to control software and 5-pin-MIDI hardware — with MIDI merge — at the same time
  • Travelling laptop producers and live performers who need dense control in a backpack-sized, bus-powered box
  • Owners of a plasticky older Launch Control XL who want the screen, endless encoders and real MIDI ports

Think twice if

  • You perform live and need to sweep filters/sends fast in DAW mode — the endless-encoder sensitivity there frustrates some, and the acceleration fix doesn't cover it
  • You want keys, pads, motorised faders, a sequencer or CV/gate — this is strictly a fader-and-encoder control surface
  • You mainly configure and use controllers on an iPad/iPhone — the Components editor doesn't run on iOS
  • You just need cheap, simple DAW faders — an Akai MIDImix or Korg nanoKONTROL2 costs far less
  • You rely on an at-a-glance LED value ring around each knob — this shows values on a small OLED instead

The reviewer consensus

Agreement &
disagreement.

1 / 7topics divide opinion
integrationconnectivityportabilitysoftwarebuildvaluecontrols
3 Strong agreement3 Mostly agree1 Divided opinions

Common ground7

  • The third-generation headline upgrade — full-size 5-pin MIDI (In/Out/Out2/Thru) with power-over-MIDI and internal MIDI merge — finally makes it work standalone and as a hybrid hardware/DAW hub
  • USB-C bus power (from a computer, phone charger or power bank) with no wall-wart to carry
  • A notably more solid, premium chassis than the plasticky Mk2 — no flex, consistent control resistance

Points of contention3

  • The endless encoders split users: most call them firm and satisfying, but a substantive minority find their DAW-mode sensitivity sluggish for fast/live mixing (multiple turns to sweep a parameter) — and the firmware acceleration fix applies only to Custom Modes, not the DAW modes
  • Whether reading values off the small OLED is enough, or whether each encoder needs a value-indicator LED ring, divides users — and some find the encoders a touch stiff, with no push/click or touch
  • The Components mapping editor divides opinion — powerful to some, clunky and tedious to others — and it's desktop/web only, with no iOS support

A closer look.

7 topics · 1 divided
Left: criticalRight: positiveTighter lines: more agreement

Controls

Leans positiveDivided opinions
Reviewer sentiment9 supporting sources
CriticalNeutralPositive

Band: opinion spread · Dot: weighted average

The core of the device and its one genuinely divided axis. The build of the controls is widely praised — eight smooth 60mm faders, 24 firm endless encoders with per-encoder RGB LEDs, 16 buttons and a dedicated transport section — and endless encoders neatly kill the parameter 'jump' that plagued the old pots. Extended-use reviewers call them satisfying and consistent. The split is over live/DAW usability: a substantive minority find the endless encoders' DAW-mode sensitivity sluggish (it can take almost three full turns to sweep a parameter, which firmware 1.1 lets you fix with an acceleration setting — but only in Custom Modes, not the DAW mixer/control modes), and there are recurring gripes that the encoders are a touch stiff, have no push/click or touch, and lack a value-indicator LED ring, so you read values off the tiny OLED. Faders have no LEDs at all.

Measured

Novation's spec: 24 endless rotary encoders (each with an RGB LED that dims/brightens to hint position), eight 60mm throw faders, and 16 buttons (two below each fader). Firmware 1.1 added adjustable encoder-acceleration curves and a fader 'pickup' mode — but the acceleration setting applies only to Custom Modes, not the DAW Mixer/Control modes. The encoders have no push/click or touch sensing, and the faders have no LEDs.

Where it splits
Firm, satisfying and consistent — a dense fader/encoder surface that tracks reliably72%

“The encoders are especially satisfying—they don't wobble, they track consistently, and the RGB feedback makes it easy to stay oriented even when switching between modes.”

Magnetic Magazine
Sluggish and impractical for fast/live use in DAW mode — and no value ring to read at a glance28%

“On the XL 3, it takes almost three full rotations to get through the range. It's completely impractical for live performance or fast mixing.”

u/metafysikz · r/Novation
Link to this topic

The hardware

Specifications.

Checked

Playing surface

Encoders
24 endless
Faders
8
Display
OLED

Workflow

Standalone
Yes
DAW integration
Ableton Live, Logic Pro, FL Studio, Cubase, Bitwig Studio

Connection

USB
USB-C
MIDI
DIN in, DIN out, DIN thru
Power
USB bus power

Physical

Weight
930 g
Dimensions
250 × 239 × 43 mm

Manufacturer-published figures, not measurements · from novationmusic.com.

Follow the evidence

Sources 11

1–6 of 11 sources

Read with context

Limitations & method.

As of

What to keep in mind 5

  1. This is a read of where the reviews land as of July 2026, for the third-generation Launch Control XL — reviews of the earliest firmware predate the January 2026 v1.1 update, which added Mackie HUI, encoder-acceleration curves and fader pickup.

  2. How the endless encoders feel is the most personal part: whether their DAW-mode speed reads as 'precise' or 'sluggish' depends a lot on whether you're doing careful studio moves or fast live sweeps, so try one if you can.
